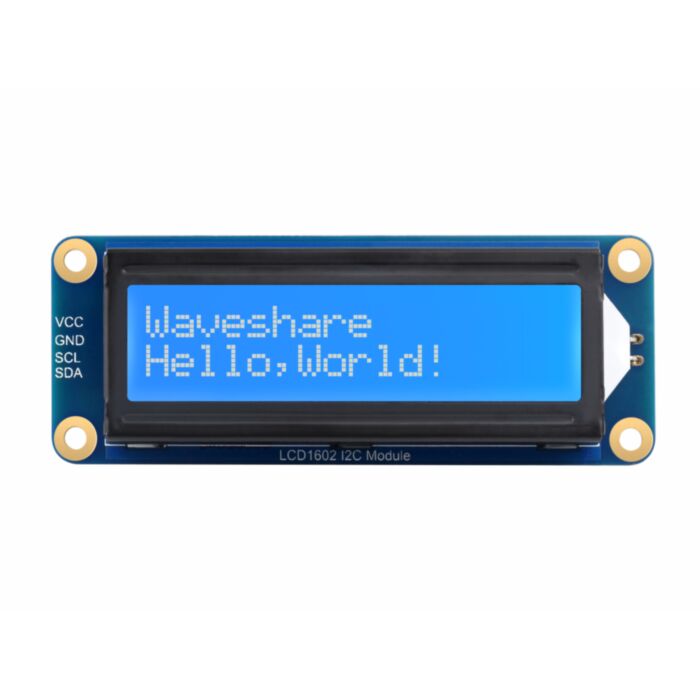

White I2C 16x02 LCD Display (White on Blue, 3/5V)

SKU: CE09541 Brand: Waveshare
LCD1602 I2C Module, White color with blue background, 16x2 characters LCD, 3.3V/5V...
$13.50 AUD, inc GST
$12.27 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 5th of Mar

Quantity Discounts:

  • 10-25 $11.91 (exc GST)
  • 25+ $11.65 (exc GST)
- +

10 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

LCD1602 I2C Module, White color with blue background, 16x2 characters LCD

Features

  • Incorporates character LCD panel LCD1602
  • I2C control interface, only two signal pins are required, saving the IO resource
  • Compatible with 3.3V/5V operating voltage
  • Comes with online development resources and manual (Raspberry Pi/Jetson Nano/ESP32/Arduino examples)

Specifications

Communication InterfaceI2CLCD controllerAiP31068
Operating voltage3.3 ~ 5VOperating Temperature-20°C ~ +70°C
Display Panelcharacter LCDDisplay size64.5 × 16.0mm
Characters16 × 2Dimensions87.0 × 32.0 × 13.0mm

Pinout

VCC3.3V ~ 5V power input
GNDGND
SCLI2C clock pin
SDAI2C data pin



Dimensions





Resources

Wiki for White 1602 LCD
