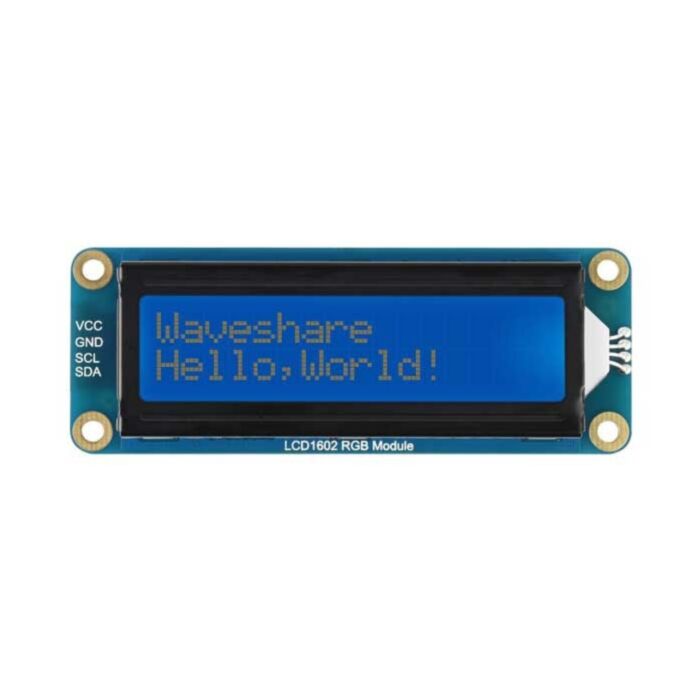

LCD1602 RGB Module, 16x2 Characters LCD, RGB Backlight, 3.3V/5V, I2C Bus

Rating:
100% of 100
SKU: CE07881 Brand: Waveshare
Adjustable RGB Backlight Color, I2C Communication, 3.3V/5V Compatible. Supports Raspberry Pi / Pi Pico, Jetson Nano, and Arduino...
$21.90 AUD, inc GST
$19.91 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Fri, 31st of May

Quantity Discounts:

  • 10-25 $19.31 (exc GST)
  • 25+ $18.91 (exc GST)
- +

3 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Adjustable RGB Backlight Color, I2C Communication, 3.3V/5V Compatible. Supports Raspberry Pi / Pi Pico, Jetson Nano, and Arduino...

Features

  • Incorporates character LCD panel LCD1602
  • Adjustable RGB backlight color, up to 16M (2563) backlight colors in theory
  • I2C control interface, only two signal pins are required, saving the IO resource
  • Compatible with 3.3V/5V operating voltage
  • Comes with development resources and manual (Raspberry Pi/Jetson Nano/Arduino examples)

Specifications

  • Operating voltage: 3.0V ~ 5.5V
  • Communication Interferance: I2C
  • Display Panel: Character LCD
  • Characters: 16x2
  • Backlight Colours: 16M
  • LCD Controller: AiP31068
  • RGB Driver: PCA9633
  • Display Size: 64.5x16mm
  • Dimensions: 87x32x13mm
  • Operating Voltage: -20~+70°C

I2C Control Interface

For connecting with host boards like raspberry pi or Arduino.

  • VCC: 3.3V ~ 5V power input
  • GND: GND
  • SCL: I2C clock pin
  • SDA: I2C data pin

Resources

Manufacturer's product wiki

Hardware Connection

Connecting with Raspberry Pi Pico

Connecting with Raspberry Pi

Connecting with Arduino Board

Connect with Jetson Nano Developer Kit

Dimensions

Shipping List

  • 1x LCD1602 RGB Module
  • 1x PH2.0 4PIN wire
