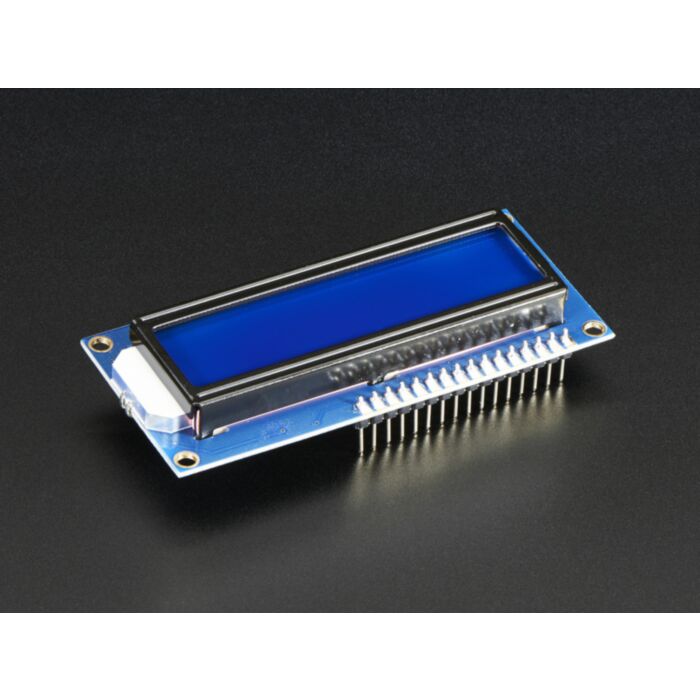

Assembled Standard LCD 16x2 + extras - White on Blue

SKU: ADA1447

$18.50 AUD, inc GST
$16.82 AUD, exc GST

More Views

Assembled Standard LCD 16x2 + extras - White on Blue
18.5 AUD

SKU: ADA1447

$18.50 AUD, inc GST
$16.82 AUD, exc GST
2 reviews 0 5 5

Standard HD44780 LCDs are useful for creating standalone projects.  This product is similar to Adafruit's Standard LCD 16x2 display but comes with the header soldered on!

  • 16 characters wide, 2 rows
  • White text on blue background
  • Connection port is 0.1" pitch, single row for easy breadboarding and wiring
  • Pins are documented on the back of the LCD to assist in wiring it up
  • Single LED backlight included can be dimmed easily with a resistor or PWM and uses much less power than LCD with EL (electroluminescent) backlights
  • Can be fully controlled with only 6 digital lines! (Any analog/digital pins can be used)
  • Built in character set supports English/Japanese text, see the HD44780 datasheet for the full character set
  • Up to 8 extra characters can be created for custom glyphs or 'foreign' language support
  • Comes with necessary contrast potentiometer

For more information, check out Adafruit's detailed step-by-step Arduino+LCD tutorial

Adafruit have a datasheet that has dimensions and pin-locations and then a HD44780 datasheet with the detailed commands for control

Technical Details

  • Screen Dimensions: 24mm x 69mm / 0.9" x 2.7"
Documentation and Resources:

Product Comments


Customer Reviews

  1. Review by Sam verified purchaser
    Rating
    100

    Great item for the amateur maker; provides some great functionality to those growing projects. (Posted on 2/08/2017)

  2. Review by Chris verified purchaser
    Rating
    100

    A great little LCD. (Posted on 19/04/2017)
