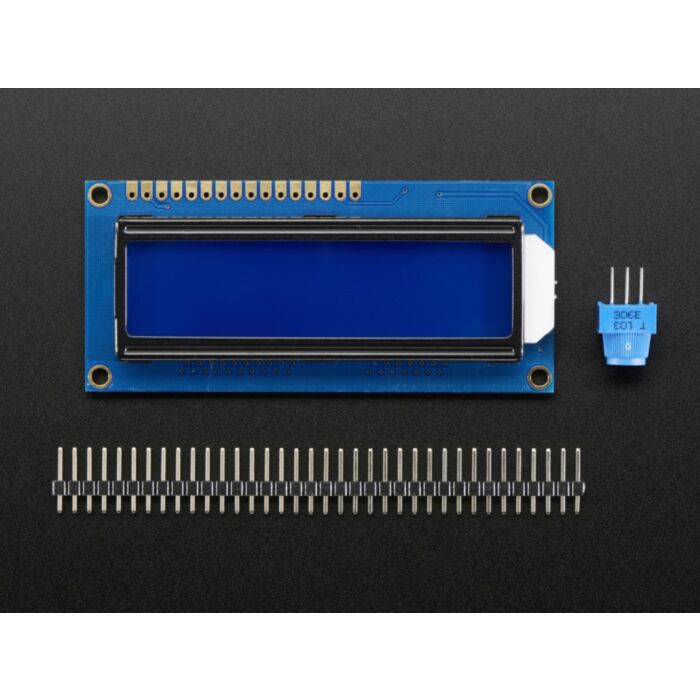

Standard LCD 16x2 + extras - white on blue

Rating:
100% of 100
SKU: ADA181 Brand: Adafruit
Standard HD44780 LCDs are useful for creating standalone projects. 16 characters wide, 2 rows White text on blue background Connection port is 0.1" pitch, single...
$19.00 AUD, inc GST
$17.27 AUD, exc GST

Available with a lead time
Expect dispatch between Oct 14 and Oct 17

Quantity Discounts:

  • 10+ $17.02 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Standard HD44780 LCDs are useful for creating standalone projects.

  • 16 characters wide, 2 rows
  • White text on blue background
  • Connection port is 0.1" pitch, single row for easy breadboarding and wiring
  • Pins are documented on the back of the LCD to assist in wiring it up
  • Single LED backlight included can be dimmed easily with a resistor or PWM and uses much less power than LCD with EL (electroluminescent) backlights
  • Can be fully controlled with only 6 digital lines! (Any analog/digital pins can be used)
  • Built in character set supports English/Japanese text, see the HD44780 datasheet for the full character set
  • Up to 8 extra characters can be created for custom glyphs or 'foreign' language support
  • Comes with necessary contrast potentiometer and strip of header

For more information, check out Adafruit's detailed step-by-step Arduino+LCD tutorial

Adafruit have a datasheet that has pin-locations and more plus a HD44780 datasheet with the detailed commands for control

Technical Details

  • PCB Dimensions: 36mm x 80.6mm x 1mm / 1.4" x 3.2" x 0.04"
  • Screen Dimensions: 24mm x 69mm / 0.9" x 2.7"
  • Height (pcb+screen): 8.4mm / 0.33"
