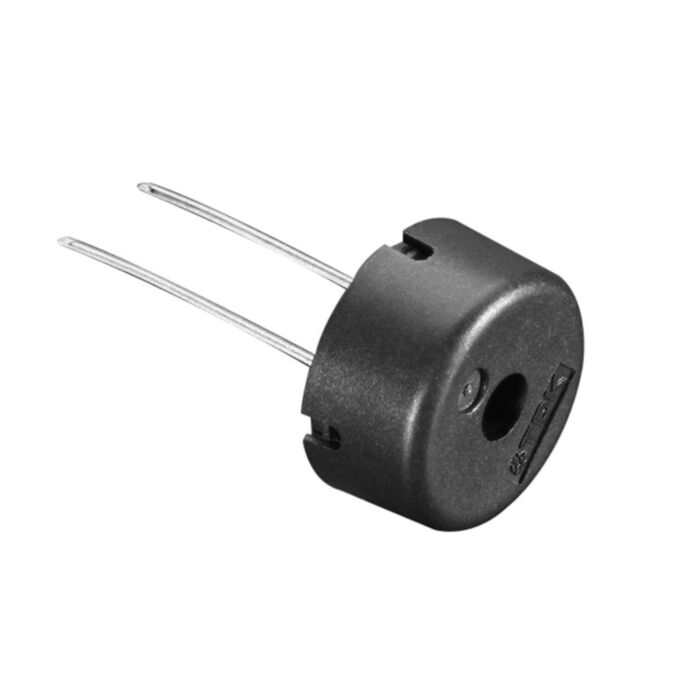

Piezo Buzzer - PS1240

SKU: ADA160 Brand: Adafruit Guides (1)
Piezo buzzers are used for making beeps, tones and alerts. This one is petite but loud! Drive it with 3-30V peak-to-peak square wave. To use, connect one pin to...
$3.10 AUD, inc GST
$2.82 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 16th of Aug

Quantity Discounts:

  • 10-25 $2.71 (exc GST)
  • 25+ $2.62 (exc GST)
- +

28 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Piezo buzzers are used for making beeps, tones and alerts. This one is petite but loud! Drive it with 3-30V peak-to-peak square wave. To use, connect one pin to ground (either one) and the other pin to a square wave out from a timer or microcontroller. For the loudest tones, stay around 4 KHz, but works quite well from 2KHz to 10KHz. For extra loudness, you can connect both pins to a microcontroller and swap which pin is high or low ('differential drive') for double the volume.

Note - nothing will happen if you 'just' connect a power source. You'll need to drive this piezo with a square wave signal, which allows different frequency/pitches (really handy!)

Here is the datasheet

Technical Details

Dimensions:

  • Diameter: 11.90mm/0.47in
  • Height: 6.53mm/0.26in
  • Weight: 0.70g/0.02oz

netduino driver and netduino sample. This sample plays RTTL ring tones based on classic video games. They sound pretty good on a piezo buzzer or a small speaker.

This product is listed in:

Components & Parts>Buzzers & Piezos
