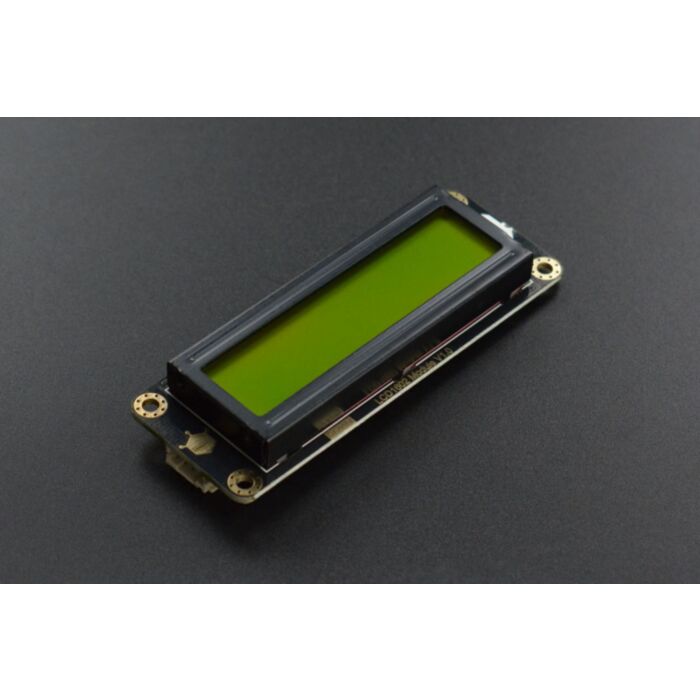

Gravity: I2C LCD1602 Arduino LCD Display Module (Green)

Rating:
100% of 100
SKU: DFR0556 Brand: DFRobot Guides (1)
Referring to the LCD16020, I believe that everyone is not unfamiliar with the square shape, green color, a row of 2.54 pin header.... LCD1602 module is a product...
$18.05 AUD, inc GST
$16.41 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Wed, 27th of Nov

Quantity Discounts:

  • 10-25 $15.92 (exc GST)
  • 25+ $15.59 (exc GST)
- +

5 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Introduction

Referring to the LCD16020, I believe that everyone is not unfamiliar with the square shape, green color, a row of 2.54 pin header.... LCD1602 module is a product of the DFRobot Gravity IIC series, which has been greatly optimized for its original LCD1602 appearance. This module does not need to adjust the contrast, retain the backlight controllable function, and simultaneously compatible with 3.3V and 5V voltage. The optimization of function and the appearance will bring you the different experience.

Specification
  • Operating Voltage: 3.3V~5.0V
  • Operating Current: =20mA
  • Display Description: 16*2
  • Communication Mode: IIC/I2C
  • Backlight: Green
  • Operating Temperature: -20 to +70°C
  • Storage Temperature: -30 to +80°C
  • Dimension: 87.0*32.0*13.0mm/3.43*1.26*0.51in
Documents Parts List
  • Gravity: I2C LCD1602 Arduino LCD Display Module (Green) x1
  • Gravity I2C/UART sensor cable x1
