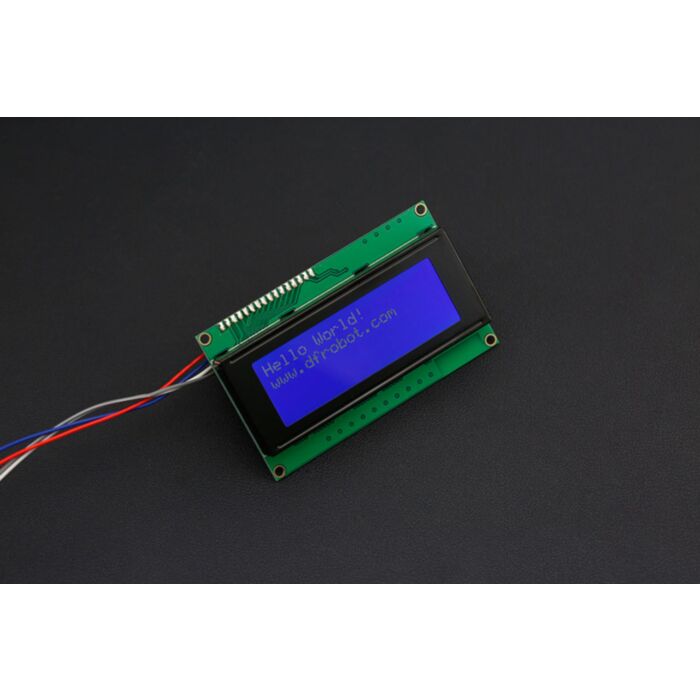

I2C/TWI LCD2004 Module (Arduino/Gadgeteer Compatible)

Rating:
100% of 100
SKU: DFR0154 Brand: DFRobot

I2C/TWI LCD2004 module compatible with Gadgeteer is a cool lcd display with a high speed I2C serial bus (400kHz) from DFRobot. With the limited pin resources, your project may be out of resources using normal LCD shield. The LCD display is a 4x20 character STN white display with a blue LED backlight.

$26.55 AUD, inc GST
$24.14 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

  • 10-25 $23.41 (exc GST)
  • 25+ $22.93 (exc GST)
- +

1 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This is a 20x4 Arduino compatible LCD display module with high speed I2C interface. It is able to display 20x4 characters on two lines, white characters on blue background.
Generally, LCD display will run out of Arduino pin resource. It needs 6 digital pins and 2 power pin for a LCD display. If you want to build a robot project, it will be a problem with Arduino UNO and LCD display.
This I2C 20x4 LCD display module is designed for Arduino microcontroller. It is using I2C communication interface, With this I2C interface, only 2 lines (I2C) are required to display the information on any Arduino based projects. It will save at least 4 digital / analog pins on Arduino. All connector are standard XH2.54 (Breadboard type). You can connect it with jumper wire directly.



I2C 20x4 Arduino LCD display

This 1602 LCD module has 8 I2C address in all, from 0x20 to 0x27. You can set one according to your requirements, avoiding the confliction of I2C address. And its contrast can be adjusted manually.

This board is able to be powered by 5V or 3.3V which make it compatible with both Arduino 101 or Arduino  DUE,  intel edison 3.3V system and standard Arduino UNO/Arduino Mega 5V system.


I2C 20x4 Arduino LCD Display Module



SPECIFICATION

  • I2C Address: 0x20-0x27(0x20 default)
  • I2C connector:  VCC, GND, SCL, SDA
  • I2C speed: 400kHz
  • Number of Characters: 20 characters x 4 Lines
  • Blue LED backlight with white char color
  • Adjustable contrast
  • Supply voltage: 5V(via Pin)  3.3V(via IDC10)
  • Interface: I2C/TWI x1,IDC10 x2
  • View direction: Wide viewing angle
  • Dot size: 0.55 x 0.55 mm(0.02x0.02")
  • Dot pitch: 0.60 x 0.60 mm(0.023x0.023")
  • Character size: 2.96 x 4.75 mm(0.11x0.19")
  • Character pitch: 3.55 x 5.35 mm(0.14x0.21")
  • Size: 98x60x24mm(3.86x2.36x0.94")


SHIPPING LIST

  • I2C 20x4 Arduino LCD Display Module  x1
