Clear Turbine Water Flow Sensor with 3-pin JST

Rating:

100% of 100

1 Review

SKU: ADA5066 Brand: Adafruit

$14.45 AUD, inc GST

$13.14 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 7th of Jan

Quantity Discounts:

10-25 $12.75 (exc GST)
25+ $12.35 (exc GST)

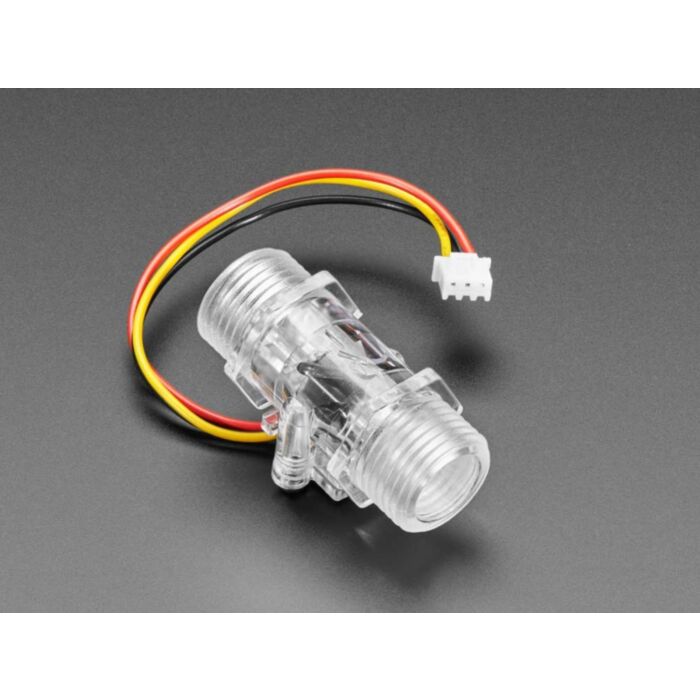

Measure liquid/water flow for your solar, computer cooling, or gardening project using this handy basic flow meter featuring a fully clear plastic body. This sensor sits in line with your water line and uses a pinwheel sensor to measure how much liquid has moved through it. The pinwheel has a little magnet attached, and there's a hall effect magnetic sensor on the other side of the plastic tube that can measure how many spins the pinwheel has made through the plastic wall. This method allows the sensor to stay safe and dry.

The sensor comes with a JST PH 2mm pitch connector and three wires: red (5-15VDC), black (ground), and yellow (Hall effect pulse output). By counting the pulses from the output of the sensor, you can easily track fluid movement: each pulse is approximately 2.25 milliliters. Note this isn't a precision sensor, and the pulse rate does vary a bit depending on the flow rate, fluid pressure, and sensor orientation. It's designed for 1 to 30 Liters/min. It will need careful calibration if better than 10% precision is required. However, it's great for basic measurement tasks!

Specifications

22AWG cables
Working Voltage: DC 5V to 15V
Current Draw: 15mA (at DC 5V)
Flow Rate Range: 1~30L/min
Flow Pulse: Frequency (Hz) = (5.0*Q) ±3% where Q=L/Min
Max Operating Temperature: <80 degree C
Max Liquid Temperature: <120 degree C
Operating Humidity: 35%~90%RH
Max Water Pressure: <1.75MPa
Storage Temperature: -25~+80 degree C
Storage Humidity: 25%~95%RH
