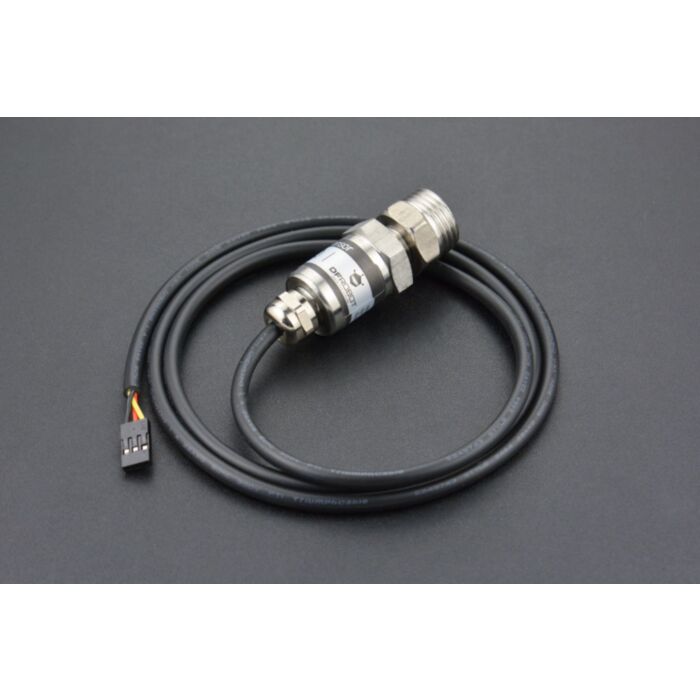

Gravity: Analog Water Pressure Sensor (1MPa)

Rating:
100% of 100
SKU: SEN0257 Brand: DFRobot
This is a water pressure sensor adopts DFRobot Gravity 3-pin interface. It supports standard 5V voltage input and 0.5~4.5V linear voltage output. It is compatible...
$32.49 AUD, inc GST
$29.54 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Fri, 19th of Apr

Quantity Discounts:

  • 10+ $29.09 (exc GST)
- +

8 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Measurement range is 0 -> 1MPa despite sticker indicating 1.6MPa

This is a water pressure sensor that adopts the DFRobot Gravity 3-pin interface. It supports standard 5V voltage input and 0.5~4.5V linear voltage output. It is compatible with multiple Arduino controllers. Use with a DFRobot Gravity IO Expansion Shield, the water pressure sensor can be plugged into an Arduino board, wiring-free. Put it with Solenoid Valve, Water Turbine Generator and other sensors, you can build a smart water control system.

As we sometimes get asked - we have no info suggesting this will work in air-only setups. The manufacturer indicates water/liquid use.

Briefly speaking, this water pressure sensor is a stethoscope for a water pipe. It will help you to diagnose whether there is water, and how strong the water pressure is.

Applications

  • Support water pressure detection of living environmental water systems, such as houses, gardens and farms.
  • Support water pressure detection of the outdoor environment, such as rivers, lakes and sea.
  • Support water pressure detection of tanks;
  • Support liquid level detection in special situation detection in specified liquid;

Specifications

  • Medium: liquid/gas without corrosion
  • Wiring: Gravity-3Pin (Signal-VCC-GND)
  • Pressure Measurement Range: 0~1 Mpa
  • Input Voltage: +5 VDC
  • Output Voltage: 0.5~4.5 V
  • Measurement Accuracy: ~0.5% 55°C)
  • Threadably: G1/4
  • Adapter: G1/2 to G1/4
  • Waterproof Level: IP68
  • Operating Temperature: -20~85°C
  • Response Time: <2.0 ms
  • Quiescent Current: 2.8 mA
  • Normal Operating Pressure: ≤2.0 Mpa
  • Damaged Pressure: ≥3.0 Mpa
  • Service Life: ≥10’000’000 times (10 million)
  • Cable Length: 1 m

Documents

Shipping Contents

  • Gravity: Analog Water Pressure Sensor x1
  • G1/2 to G1/4 Connector (mounted) x1

This product is listed in:

Sensors>Liquid & Flow
