Gravity: Throw-in Type Liquid Level Transmitter

Rating:

100% of 100

SKU: KIT0139 Brand: DFRobot

This throw-in type liquid level transmitter adopts high-performance pressure sensing chip, with advanced circuit processing and temperature compensation technology...

$84.60 AUD, inc GST

$76.91 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 24th of Dec

Quantity Discounts:

6-12 $74.60 (exc GST)
12+ $73.06 (exc GST)

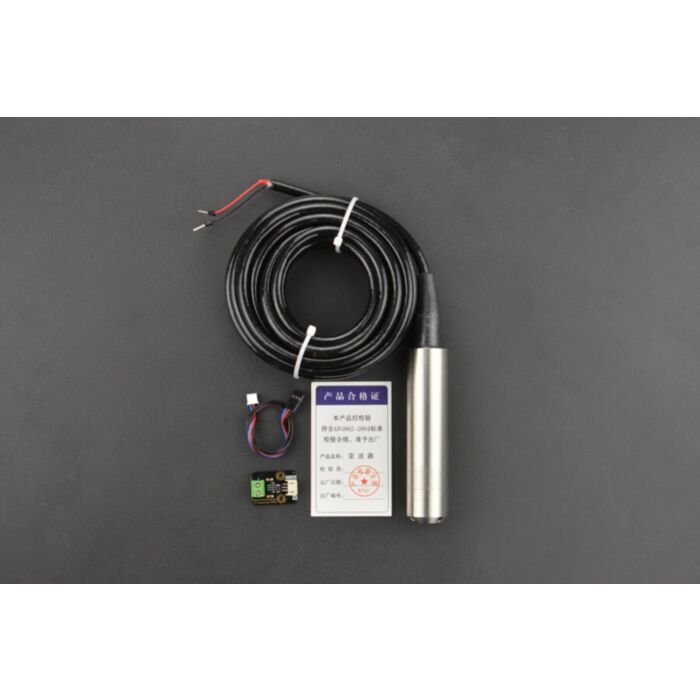

This "throw-in" type liquid sensor adopts a high-performance pressure sensor, complete with temperature compensation. You could use this pressure data to determine the depth of liquid above the sensor, and therefore the volume of liquid in a container

The shell of the sensor is made of stainless steel, a naturally anti-corrosive and easy-to-clean material. It can be directly placed in liquids like water, oil or even something thicker!

Since this sensor outputs a fairly obscure current output (yep, not voltage), DFRobot have bundled in their analog current to voltage converter board to make this sensor usable with Arduinos or similar microcontrollers

Specifications

Cable length: 5m
Measurement range: 0-5m
Accuracy: 0.5%
Output signal: 4-20mA
Operating voltage: 12-36V
Operating temperature: -20°C - 70°C
Material: 316L stainless steel
Ingress protection: IP68

Usage Notes:

Make sure you connect the power supply exactly as shown in the diagram on the Product Wiki
The workings of this sensor are fairly fragile. Make sure you don't disassemble or drop the device, or puncture its diaphragm with any sharp objects
This sensor requires a pre-heating period of about 30 minutes with the power supply connected before accurate readings can be made

Documents and Resources

Product Wiki

This product is listed in:

Sensors>Liquid & Flow
