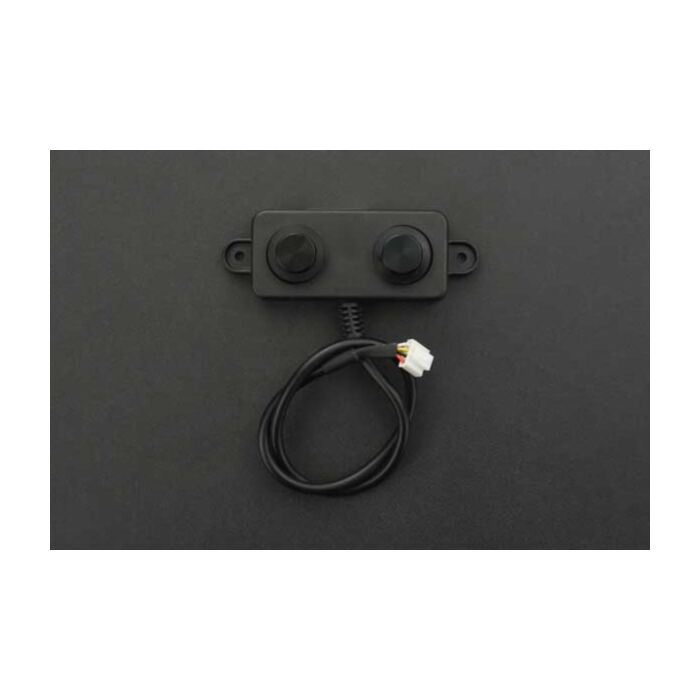

A02YYUW Waterproof Ultrasonic Sensor

Rating:
100% of 100
SKU: SEN0311 Brand: DFRobot
Ultrasonic distance sensor determines the distance to a target by measuring time lapses between the sending and receiving of the ultrasonic pulse. This is an easy-to-use...
$33.95 AUD, inc GST
$30.86 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Mon, 25th of Nov

Quantity Discounts:

  • 10-25 $29.94 (exc GST)
  • 25+ $29.32 (exc GST)
- +

15 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Ultrasonic distance sensor determines the distance to a target by measuring time lapses between the sending and receiving of the ultrasonic pulse. This is an easy-to-use commercial-grade ultrasonic sensor module of high performance and reliability, featuring much smaller blind zone, wider sensing angle and a certain penetration power(smog, dust) compared with other similar sensors .



Connection with Arduino

The ultrasonic sensor adopts closed separated probe, waterproof and dustproof, which could be well suitable for harsh and moist measuring environment. All the signal processing units are integrated inside the module, so users can directly obtain the distance value through Asynchronous Serial Interface. With 9600bit/s band rate, the sensor can easily communicate with upper-host or other MCU, which greatly shortens the developing cycle for users.

Connection with Raspberry Pi

Use the sensor with Arduino controller to build up your projects, such as backing car annunciator, obstacle avoidance robot, object approaching detection etc.



Beam Directionalities Diagram

Dimension Diagram

Specification



  • Operating Voltage: 3.3~5V
  • Average Current: <8mA
  • Blind Zone Distance: 3cm
  • Detecting Range(Flat object): 3-450cm
  • Output: UART
  • Response Time:100ms
  • Operating Temperature: -15°C ~ 60°C
  • Storage Temperature: -25°C ~ 80°C
  • Reference Angle: 60º
  • Waterproof Grade: IP67

Documents

Parts List

  • A02YYUW Waterproof Ultrasonic Sensor x1
  • PH2.0-4P Connector x1
