Introduction

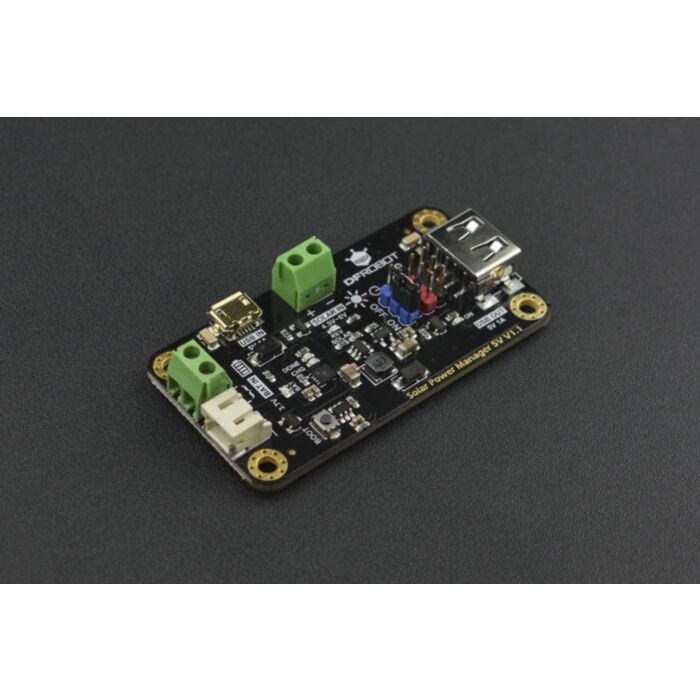

DFRobot is launching a brand new series - Sunflower, focusing on high-efficiency, small power solar energy management for IoT projects and renewable energy applications.


Solar Power Manager 5V is a small power and high-efficiency solar power management module designed for 5V solar panel. It features as MPPT (Maximum Power Point Tracking) function, maximizing the efficiency of the solar panel. Apart from serving as a solar charger, the module can provide up to 900mA charging current to 3.7V Li battery with USB charger. The ON/OFF controllable DC-DC converters with 5V 1A output satisfies the needs of various solar power projects and low-power applications. The module also employs various protection functions, such as battery/solar panel reverse connection protection, output over temperature and over current/short circuit protection, which greatly improves the stability and safety of the system.


NOTE: This board DOES NOT have over-discharge protection circuits, please use a 3.7V Lipo battery with protection circuits.


Board Overview



Solar Power Manager 5V interfaces (front)



Solar Power Manager 5V interfaces (back)

Connection Diagram



Build a solar powered system

FEATURES

  • Constant voltage MPPT algorithm, maximizing solar panel efficiency
  • Designed for 5V solar panel
  • Double charging mode: solar/USB charger (900mA max charge current)
  • 5V ON/OFF controllable regulated power supply for low-power applications
  • Various protection functions
  • USB connector with ESD shell
  • APPLICATIONS

  • Smart solar environment monitor system
  • Solar powered robot
  • Small solar street lamp
  • Solar power bank
  • Specification

  • Solar power management IC: CN3065
  • Solar input voltage (SOLAR IN): 4.5V~6V
  • Battery input (BAT IN): 3.7V single cell Li-polymer/Li-ion battery
  • Charge current(USB/SOLAR IN): 900mA Max trickle charging, constant current, constant voltage three phases charging
  • Charging cutoff voltage(USB/SOLAR IN): 4.2V±1%
  • USB IN voltage: 5V
  • Regulated power supply: 5V 1A
  • Regulated power supply efficiency (3.7V battery IN)
    5V/USB OUT: 89%@10%Load, 86%@50%Load, 83%@90%Load
  • USB/solar charge efficiency: 73%@3.7V 900mA BAT IN
  • Maximum quiescent current: <1 mA
  • Protection functions
    BAT IN: over charge/reverse connection protection
    5V/USB OUT: short circuit/over current/over heat protection
    SOLAR IN: reverse connection protection
  • Operation temperature: -40?~85?
  • Dimension: 33.0mm*63.0mm
  • Documents

  • Product wiki
  • More Documents
  • Parts List

  • Sunflower: Solar Power Manager 5V x1
  • Black Jumper x1
  • M3 nylon pillar x4
  • M3 stainless steel screw x4
  • 14mm*14mm Aluminum cooling fin x1
  • 14mm*14mm Thermal conductive silicone pad x1
  • All-round protection functions
  • USB connector with ESD shell
  • Applications

    • Smart solar environment monitor system
    • Solar powered robot
    • Small solar street lamp
    • Solar power bank

    Specification

    • Solar power management IC: CN3065
    • Solar input voltage (SOLAR IN): 4.5V~6V
    • Battery input (BAT IN): 3.7V single cell Li-polymer/Li-ion battery
    • Charge current(USB/SOLAR IN): 900mA Max trickle charging, constant current, constant voltage three phases charging
    • Charging cutoff voltage(USB/SOLAR IN): 4.2V±1%
    • USB IN voltage: 5V
    • Regulated power supply: 5V 1A
    • Regulated power supply efficiency (3.7V battery IN)
    • Regulated Power Supply Efficiency (3.7V BAT IN): 86%@50%Load
    • USB/solar charge efficiency: 73%@3.7V 900mA BAT IN
    • Maximum quiescent current: <1 mA
    • Protection functions
      BAT IN: over charge/reverse connection protection
      5V/USB OUT: short circuit/over current/over heat protection
      SOLAR IN: reverse connection protection
    • Operation temperature: -40°C ~ 85°C
    • Dimension: 33.0mm*63.0mm

    Documents

    Parts List

    • Solar Power Manager 5V x1
    • 2.54mm Black Jumper x1
    • M3*10mm Nylon Pillar x4
    • M3*5mm Stainless Steel Screw x4
    • 14*14*7mm Black Aluminum Cooling Fin x1
    • 14*14*0.5mm Thermal Conductive Silicone Pad x1
