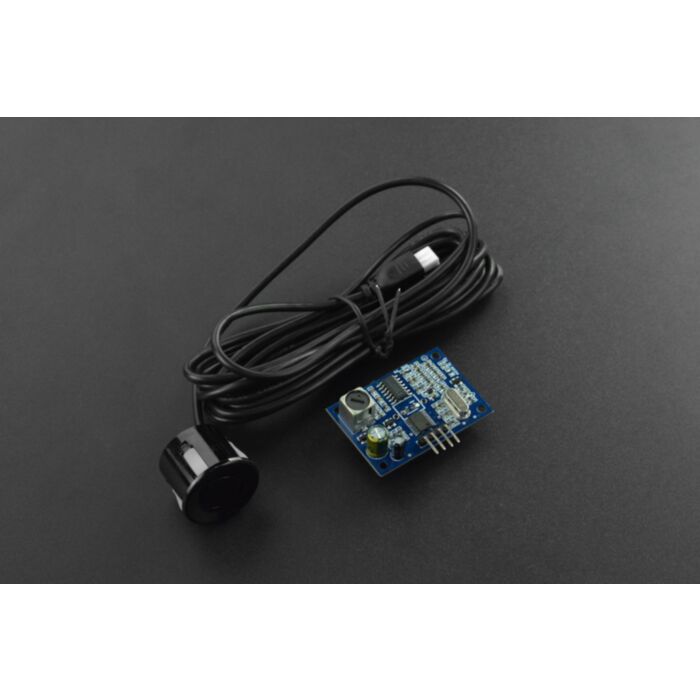

Weatherproof Ultrasonic Sensor with Separate Probe

Rating:
92% of 100
SKU: SEN0208 Brand: DFRobot
Need something to sense distance, but you're expecting things to get a bit wet? Well look no further! This sensor can stretch all the way out to 4.5m in ideal conditions, with a resolution of 0.5cm...
$26.75 AUD, inc GST
$24.32 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 24th of Dec

Quantity Discounts:

  • 10-25 $23.35 (exc GST)
  • 25+ $22.62 (exc GST)
- +

5 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Need something to sense distance, but you're expecting things to get a bit wet? Well look no further! This sensor can stretch all the way out to 4.5m in ideal conditions, with a resolution of 0.5cm. You see sensors like these often on systems like car reversing sensors, security alarms, and industrial processes. We have found that the output of this sensor can be a little noisy. To sacrifice accuracy and speed for cleanliness of output, the example code below features a simple smoothing function that will tame the output somewhat if desired. Note also that when designing or 3D printing around this sensor, the cable leaving the rear of the sensor itself is not concentric, with the surrounding housing.

Specifications

  • Operating Voltage: 5V
  • Idle Current: 5mA
  • Active Current: 30mA
  • Operating Range: 25cm - 4.5m
  • Resolution: 0.5cm
  • Field of View: 70°
  • Cable Length: 2.5m
  • Dimentsions: 41mm x 28.5mm
  • Weight: 54g
