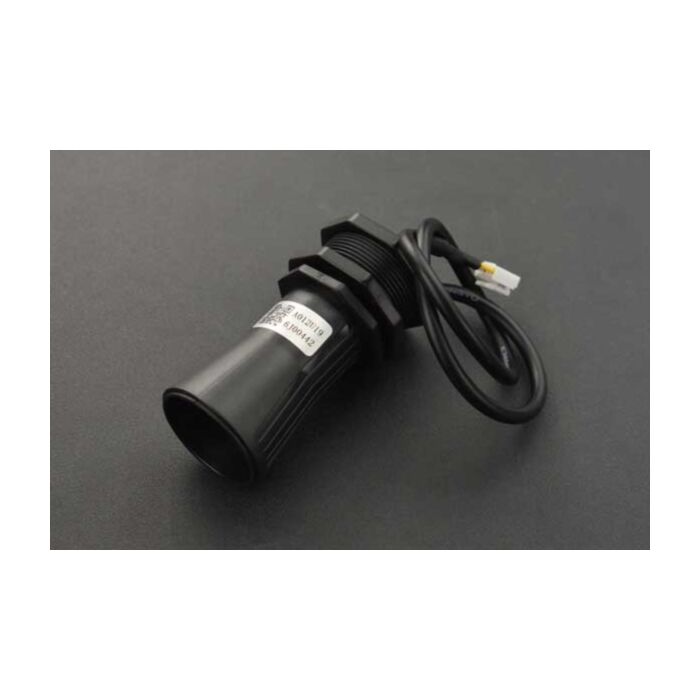

A01NYUB Waterproof Ultrasonic Sensor

Rating:
100% of 100
SKU: SEN0313 Brand: DFRobot
Ultrasonic distance sensor determines the distance to a target by measuring time lapses between the sending and receiving of the ultrasonic pulse. This A01NYUB Waterproof...
$55.88 AUD, inc GST
$50.80 AUD, exc GST

Available with a lead time
Expect dispatch between Mar 11 and Mar 18

Quantity Discounts:

  • 6+ $50.04 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Ultrasonic distance sensor determines the distance to a target by measuring time lapses between the sending and receiving of the ultrasonic pulse. This A01NYUB Waterproof Ultrasonic Sensor features farther monitoring distance, wider detection range and a certain penetration power(smog, dust). The product comes with a removable bell-mouth and the effective measuring distance is 7.5m when the bell-mouth installed.

This sensor is provided with Arduino example code via the manufacturer's product wiki, but we've also got it working on a Raspberry Pi Pico with MicroPython.

Connection with Arduino

The ultrasonic sensor adopts closed probe of transmitter & receiver, waterproof and dustproof. All the signal processing units are integrated inside the module, so users can directly obtain the distance value through Asynchronous Serial Interface. With 9600bit/s band rate, the sensor can easily communicate with upper-host or other MCU, which greatly shortens the developing cycle for users.

Connection with Raspberry Pi

Use the sensor with Arduino controller to build up your projects, such as backing car annunciator, obstacle avoidance robot, object approaching detection etc.

Beam Directionalities Diagram

Dimension Diagram



Specification

  • Operating Voltage: 3.3~5V
  • Average Current: <15mA
  • Blind Zone: 28cm
  • Detection Range (Flat Object): 28-750cm
  • Output: UART
  • Response Time: 100ms
  • Probe Center Frequency: 40K±1.0KHZ
  • Operating Temperature: -15~60°C
  • Storage Temperature: -25~80°C
  • Sensing Angle: with bell-mouth: 55º
  • without bell-mouth: 40º
  • Waterproof Grade: IP67

Documents

Shipping List

  • A01NYUB Waterproof Ultrasonic Sensor x1
  • PH2.0-4P Connector x1

This product is listed in:

Sensors>Distance>Ultrasonic
