Temperature Sensor - Waterproof (DS18B20)

Rating:
100% of 100
SKU: SEN-11050 Brand: Sparkfun

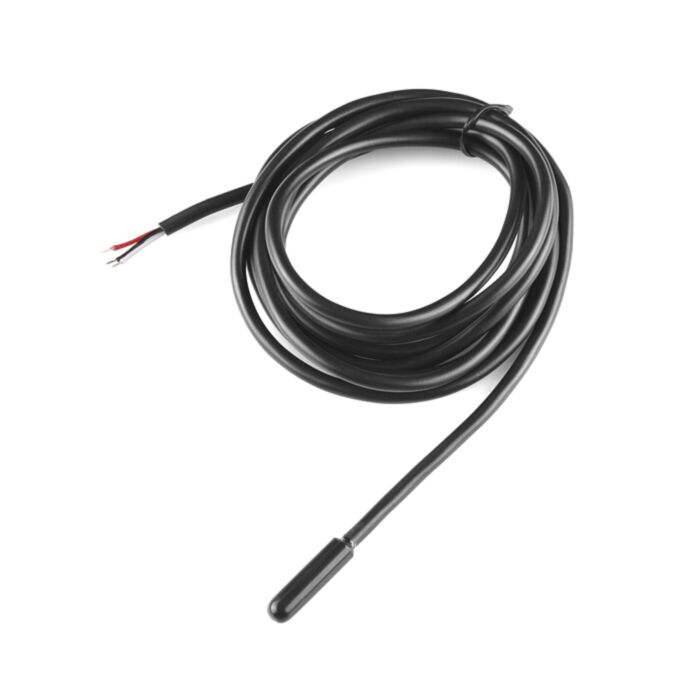

This sealed digital temperature probe lets you precisely measure temperatures in wet environments with a simple 1-Wire interface. The DS18B20 provides 9 to 12-bit (configurable) temperature readings over a 1-Wire interface, so that only one wire (and ground) needs to be connected from a central microprocessor.
$20.75 AUD, inc GST
$18.86 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 24th of Dec

Quantity Discounts:

  • 10-25 $18.30 (exc GST)
  • 25+ $17.92 (exc GST)
- +

17 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This sealed digital temperature probe lets you precisely measure temperatures in wet environments with a simple 1-Wire interface. The DS18B20 provides 9 to 12-bit (configurable) temperature readings over a 1-Wire interface, so that only one wire (and ground) needs to be connected from a central microprocessor.

It's also worth mentioning that this is a genuine DS18B20 and will operate as it expected in the Maxim datasheet.

Be aware that lower-priced devices are often clones and may not operate as expected or be permanently damaged when using official software.

Dimensions: Probe is 7mm in diameter and roughly 26mm long. Overall length (including wire) is 6 feet.

Note: The pinout for this sensor is as follows: RED=Vcc BLACK=GND WHITE=SIG

Features:

  • 3.0-5.5V input voltage
  • Waterproof
  • -55°C to+125°C temperature range
  • ±0.5°C accuracy from -10°C to +85°C
  • 1 Wire interface

Documents:
