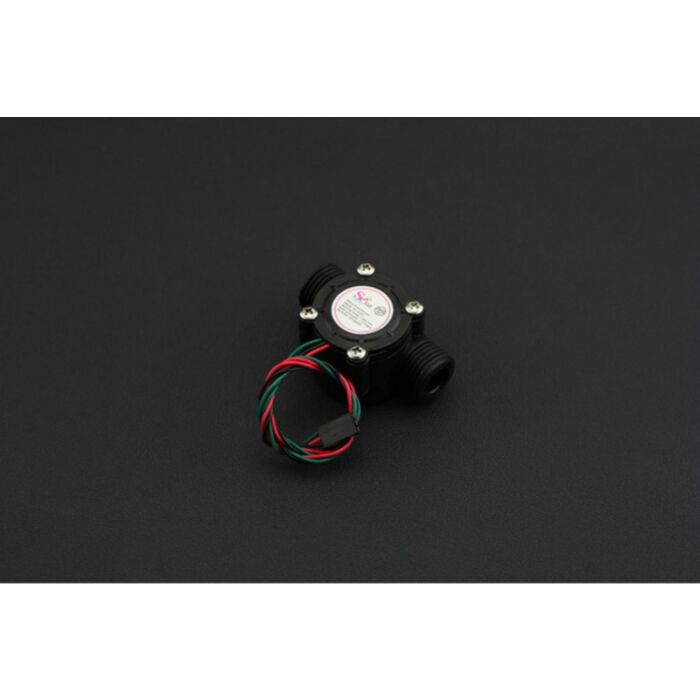

Water Flow Sensor - 1/2"

Rating:
100% of 100
SKU: SEN0217 Brand: DFRobot
The Water Flow sensor measures the rate of a liquid flowing through it. The YF-S201 water flow sensor consists of a plastic valve body, flow rotor and hall effect sensor. It is usually used at the inlet end to detect the amount of flow. When liquid flows through the sensor, a magnetic rotor will rotate and the rate of rotation will vary with the rate of flow. The hall effect sensor will then output a pulse width signal. Connect it to a microcontroller and you can monitor multiple devices such as your coffee maker, sprinkler or anything else, and control the water flow rate to suit your needs!
$15.70 AUD, inc GST
$14.27 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Mon, 14th of Oct

Quantity Discounts:

  • 10+ $14.05 (exc GST)
- +

4 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The Water Flow sensor measures the rate of a liquid flowing through it. The YF-S201 water flow sensor consists of a plastic valve body, flow rotor and hall effect sensor. It is usually used at the inlet end to detect the amount of flow. When liquid flows through the sensor, a magnetic rotor will rotate and the rate of rotation will vary with the rate of flow. The hall effect sensor will then output a pulse width signal. Connect it to a microcontroller and you can monitor multiple devices such as your coffee maker, sprinkler or anything else, and control the water flow rate to suit your needs!


Note:
*A 20 mm rifled pipe is recommended
*Avoid unit contact with corrosive chemicals
*The unit must be installed vertically, tilted no more than 5 degrees
*Liquid temperature should be less than 120 C to avoid damage to unit

Specification

  • Inner Diameter: 11 mm
  • Outside diameter: 0.78" (20 mm)
  • Thread length: 1/2"
  • Proof Water Pressure: <1.75 MPa
  • Water Flow Range: 1-30 L/min
  • Voltage Range: 5~12 V
  • Operating Current: 15 mA (DC 5V)
  • Insulation Resistance: >100 MΩ
  • Accuracy: ±5% (2~30L/min)
  • The Output Pulse High Level: >4.7 VDC (DC input voltage 5 V)
  • The Output Pulse Low Level: <0.5 VDC (DC input voltage 5 V)
  • Output Pulse Duty Ratio: 50% ± 10%
  • Water-flow Formula: 1L = 450 square waves
  • Working Humidity Range: 25% ~ 95% RH (no frost)
  • Dimension: 62*36*35 mm/2.44*1.37*1.37 inches
  • Weight: 52g

Documents

Parts List

  • Gravity - Water Flow Sensor - 1/2" x1

This product is listed in:

Sensors>Liquid & Flow
