G3&4 Water Flow Sensor (Seeed Studio)

SKU: SS314150003

$24.15 AUD, inc GST
$21.95 AUD, exc GST
G3&4 Water Flow Sensor (Seeed Studio)
24.15 AUD

SKU: SS314150003

$24.15 AUD, inc GST
$21.95 AUD, exc GST

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

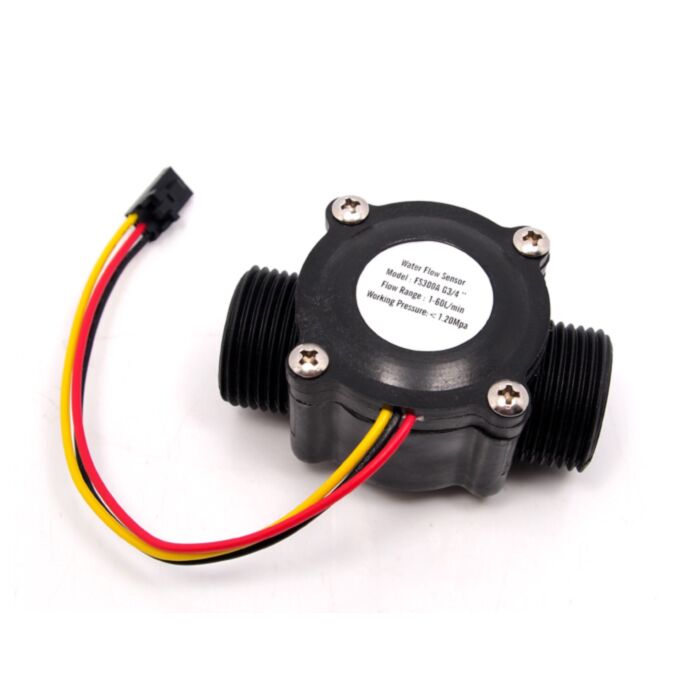

Water flow sensor consists of a plastic valve body, a water rotor, and a hall-effect sensor. When water flows through the rotor, rotor rolls. Its speed changes with different rate of flow. The hall-effect sensor outputs the corresponding pulse signal. This one is suitable to detect flow in water dispenser or coffee machine.

We have a comprehensive line of water flow sensors in different diameters. Check them out to find the one that meets your need most.


FEATURES

  •   • Compact, Easy to Install
  •   • High Sealing Performance
  •   • High Quality Hall Effect Sensor
  •   • RoHS Compliant


SPECIFICATIONS

  •   • Mini. Wokring Voltage: DC 4.5V
  •   • Max. Working Current: 15mA (DC 5V)
  •   • Working Voltage: DC 5V~24V
  •   • Flow Rate Range: 0~60L/min
  •   • Load Capacity: ≤10mA (DC 5V)
  •   • Operating Temperature: ≤80℃
  •   • Liquid Temperature: ≤120℃
  •   • Operating Humidity: 35%~90%RH
  •   • Water Pressure: ≤2.0MPa
  •   • Storage Temperature: -25~+ 80℃
  •   • Storage Humidity: 25%~95%RH


DOCUMENTS
