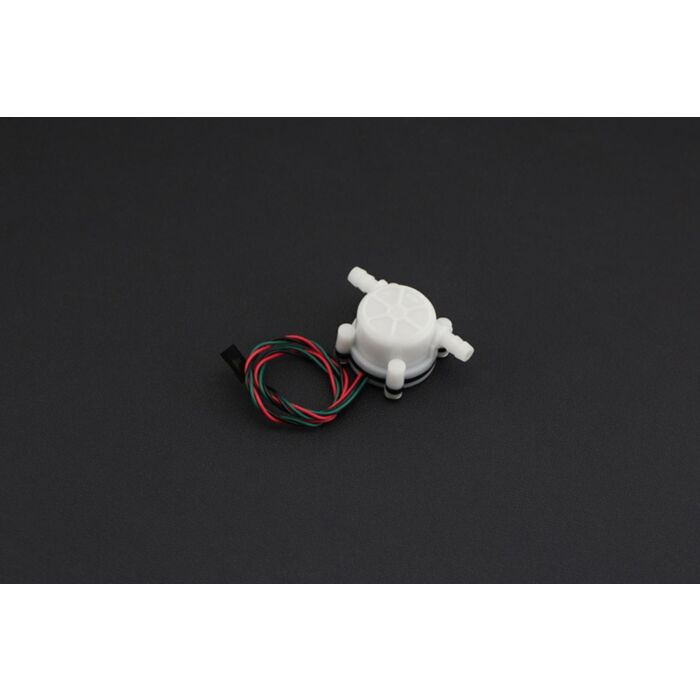

Gravity: Digital Water Flow Sensor For Arduino - 1/8

SKU: SEN0216 Brand: DFRobot

The Water Flow sensor measures the rate of a liquid flowing through it. The YF-S401 water flow sensor consists of a plastic valve body, flow rotor and hall effect...

$16.40 AUD, inc GST

$14.91 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 30 and Jan 03

Quantity Discounts:

10-25 $14.46 (exc GST)
25+ $14.16 (exc GST)

Introduction

The Water Flow sensor measures the rate of a liquid flowing through it. The YF-S401 water flow sensor consists of a plastic valve body, flow rotor and hall effect sensor. It is usually used at the inlet end to detect the amount of flow. When liquid flows through the sensor, a magnetic rotor will rotate and the rate of rotation will vary with the rate of flow. The hall effect sensor will then output a pulse width signal. Connect it to a microcontroller and you can monitor multiple devices such as your coffee maker, sprinkler or anything else, and control the water flow rate to suit your needs!

Note:
*A 6 mm hose is recommended
*Avoid unit contact with corrosive chemicals
*The unit must be installed vertically, tilted no more than 5 degrees
*Liquid temperature should be less than 120 C to avoid damage to unit

Specification

Inner Diameter: 4 mm

Outside diameter: 7 mm

Proof Water Pressure: <0.8 MPa

Water Flow Range: 0.3-6 L/min

Voltage Range: 5~12 V

Operating Current: 15 mA (DC 5V)

Insulation Resistance: >100 MO

Accuracy: ±5% (0.3-3L/min)

The Output Pulse High Level: >4.5 VDC (DC input voltage 5 V)

The Output Pulse Low Level: <0.5 VDC (DC input voltage 5 V)

Output Pulse Duty Ratio: 50% ± 10%

Water-flow Formula: 1L = 5880 square waves

Working Humidity Range: 35% ~ 90% RH (no frost)

Dimension: 58*35*26 mm/2.28*1.37*1.02 inches

Weight: 30g
