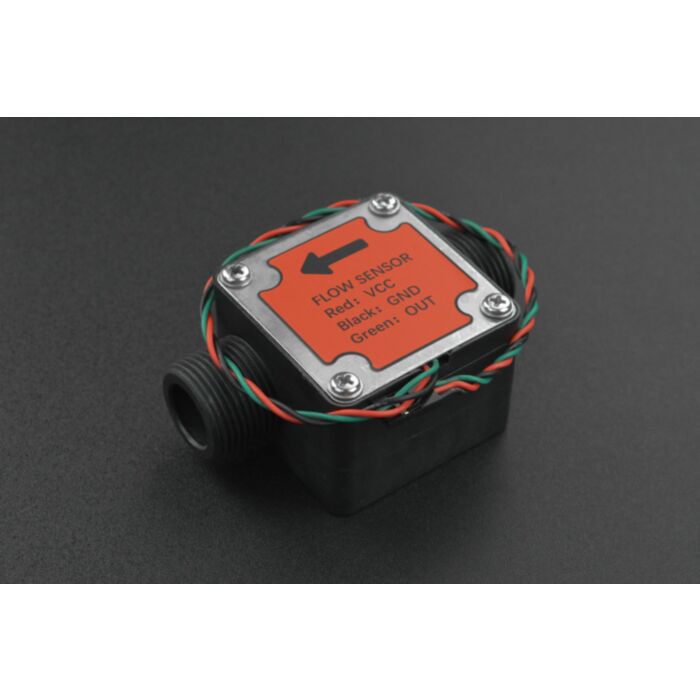

Gravity: Liquid Flow Sensor (G3/4)

SKU: SEN0551 Brand: DFRobot
This Gravity: electromagnetic-based liquid flow sensor can measure the flow of various liquids like water, diesel, engine oil, milk, paint, detergent, and...
$36.40 AUD, inc GST
$33.09 AUD, exc GST

Available with a lead time
Expect dispatch between Apr 29 and May 06

Quantity Discounts:

  • 10-25 $32.10 (exc GST)
  • 25+ $31.44 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This Gravity: liquid flow sensor is designed based on the electromagnetic principle. It adopts O-ring rubber seal and uses silicone sealant at the outlet end to strength water-resistance. With high anti-interference and anti-impact, the sensor offers reliable performance and long service life. Also, it is designed with G3/4 thread connectors for easy installation.

The sensor can be used with microcontrollers like Arduino UNO to measure the flow of liquids with high concentration and low viscosity like water, diesel, engine oil, milk, paint, detergent, honey, etc. (no impurity in liquid)

Gravity: Water Flow Sensor (G3/4)

Features

  • Gravity interface, easy to wire
  • Wide voltage of 3.5~24V
  • Measure the flow of the high-concentration but low-viscosity liquid
  • RoHS compliant
  • Applications

  • Measure the flow of liquids with high concentration and low viscosity
  • Specification

  • Operating Voltage: DC3.5~24V
  • Operating Current: =10mA (DC5V)
  • Output Mode: NPN pulse signal
  • Pipe Diameter: G3/4
  • Thread I.D.: 16mm
  • Thread O.D.: 26mm
  • Thread Length: 18.7mm
  • Water Pressure Resistance: =1.2MPA
  • Insulation Resistance: >100MO
  • Flow Range: 30-3000L/H
  • Error: ±1% (20-3000L/H)
  • Output Pulse High Level: >DC4.7V (input voltage DC5V)
  • Output Pulse Low Level:
  • Output Pulse Duty Ratio: 50%±10%
  • Flow & Pulse Correlation: 1L=75 pulses
  • Operating Temperature: =80°C
  • Operating Humidity: 35%~90%RH (No condensing)
  • Storage Temperature: -25°~+80°C
  • Storage Humidity: 25%~95%RH
  • Dimensions: 92*47*39mm/3.62*1.85*1.54"
  • Documents

  • Product wiki
  • Parts List

  • Gravity: Liquid Flow Sensor (G3/4) × 1
  • This product is listed in:

    Sensors>Liquid & Flow
