TTL UART to RS485 Converter Module

SKU: CE05154

$8.95 AUD, inc GST
$8.14 AUD, exc GST
TTL UART to RS485 Converter Module
8.95 AUD

SKU: CE05154

$8.95 AUD, inc GST
$8.14 AUD, exc GST
1 reviews 0 5 5
Shipping Offer


  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

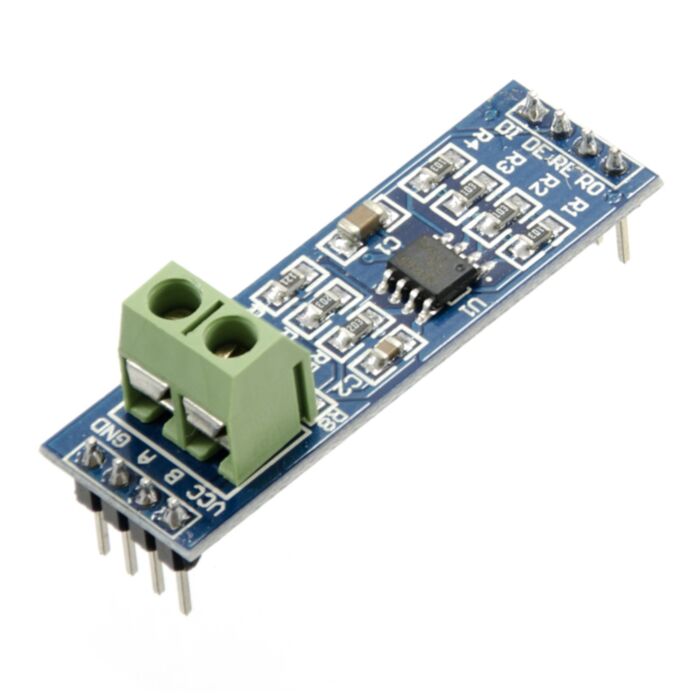

Going from TTL to RS485 is made simple by this prototyping friendly module. On one side of the board are the TTL IOs, and on the other are the RS485. At the core is a MAX485 which is powered by 5V.

Why use RS485 managed by the MAX485? There is a lot on offer so let’s just look at the highlights:

  • Operate from a Single 5V Supply
  • Allows up to 32 Transceivers on the Bus
  • Data rate: 2.5 Mbps
  • Current-Limiting and Thermal Shutdown for Driver Overload Protection
  • MAX485 Datasheet

As a whole, this module as a whole brings the above features and following functionality:

  • Breadboard friendly design (standard 0.1" spacing)
  • Easily identifiable connectors
  • An optional terminal block for the TTL IOs
  • Fully assembled, ready for use

This product is listed in:

Documentation and Resources:

Product Comments

Customer Reviews

  1. Review by Travis verified purchaser

    Rather than use these to create an RS485 network as is normally done, I've been using them to convert an RS485 stream from a proprietary device into UART and feeding it into an Arduino to decipher the code and act upon it how I want rather than using the proprietary control unit. Works flawlessly and easy to integrate into my existing circuit. (Posted on 13/06/2017)
