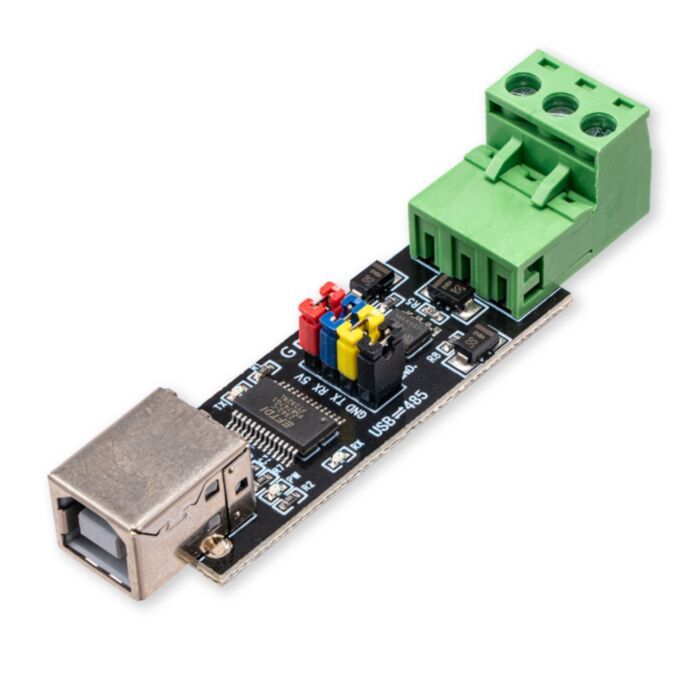

USB to RS485 Converter (FT232)

SKU: CE09876 Brand: Core Electronics

Featuring a MAX485 and FTDI232, this converter will take USB and turn it into an RS485 signal.

$9.35 AUD, inc GST

$8.50 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 22nd of Apr

Quantity Discounts:

5+ $8.33 (exc GST)
15+ $8.07 (exc GST)

Recommended Essentials:

USB A to B cable

$0.94

Your bridge between USB systems and RS485 devices. Designed for any Maker or Engineer, this converter allows for seamless serial communication across various applications.

On board Termination resistor (R5 - can be desoldered) and bias resistors(R4. R8).

If you need wire for a specific application or project - we stock this CAT5E cable (available by the metre), perfect for RS485 that benefits a lot from a twisted pair!

Features:

MAX485 Transceiver: Ensures robust and efficient RS485 communication.
FTDI232 USB Interface: Provides a stable USB connection; note that driver installation may be required for certain operating systems.
Pluggable Terminal block IO: Interface with your systems using easy-to-use terminal blocks - that are removable! (with clear labelling is printed to the silkscreen underneath the terminal blocks).
In-built protection: TVS diodes on each connection for transient protection.
Wide Compatibility: Supports various operating systems, including Windows, macOS, and Linux.
USB-B: You probably already have a cable at home or in your workshop! (They come with printers and are featured on the Arduino Uno).
Use the jumper caps to break out the UART or RS232 connection to other devices - like a microcontroller.

Specifications

USB Standard: Complies with USB 2.0.
RS485 Connector: Screw terminal for secure connections.
Data Transfer Rates: Supports speeds from 600bps to 115.2Kbps.
Maximum Communication Distance: Up to 1200 meters at 19.2Kbps.

We also stock a version with an enclosure.

Resources

Texas Instruments | The RS-485 Design Guide
