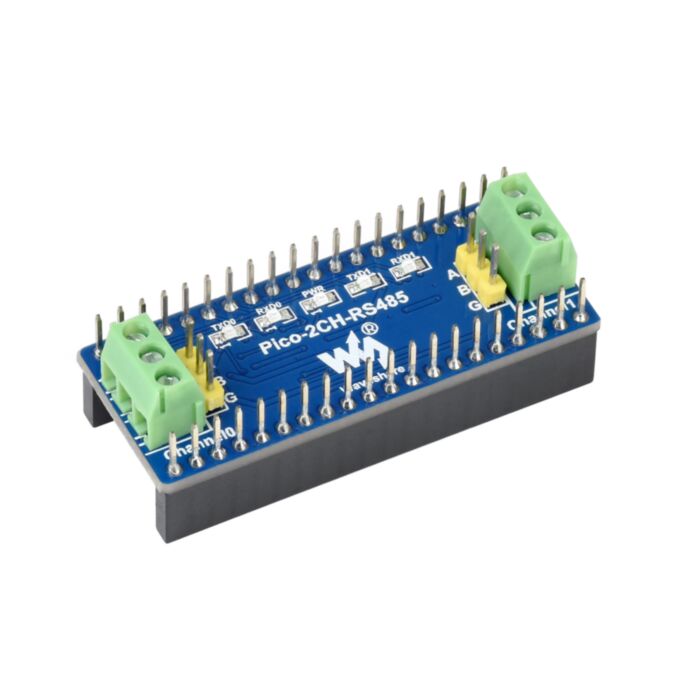

2-Channel RS485 Module for Raspberry Pi Pico, SP3485 Transceiver, UART To RS485

SKU: WS-19717 Brand: Waveshare
2-Channel RS485 Module For Raspberry Pi Pico
$11.45 AUD, inc GST
$10.41 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 19th of Nov

Quantity Discounts:

  • 10-25 $9.99 (exc GST)
  • 25+ $9.68 (exc GST)
- +

14 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

2-Channel RS485 Module for Raspberry Pi Pico, SP3485 transceiver, UART to RS4852-Channel RS485 Module for Pico

incorporates RS485 transceiver SP3485, using UART bus

Features

  • Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series
  • Using UART bus, easily converting UART to RS485, or vice versa
  • Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications

Operating voltage 3.3V RS485 transceiver SP3485
Communication bus UART Baudrate 300~500000bps

Raspberry Pi Pico header compatibility



Onboard female pin header for direct attaching to Raspberry Pi Pico, male pin header for stacking other modules. Raspberry Pi Pico and Pico-LCD-0.96 are NOT included.

What's On Board

  1. RS485 bus interface 2-channel RS485
  2. UART status indicators RXD0/TXD0: Channel 0 RX/TX indicatorsRXD1/TXD1: Channel 1 RX/TX indicators
  3. Power indicator
  4. SP3485 RS485 transceiver
  5. SMAJ12CA transient suppress diode array
  6. Raspberry Pi Pico header

Pinout definition

Outline dimensions

Documents:

  • Wiki - setup and getting started
