RS485 Shield

SKU: DFR0259

$16.12 AUD, inc GST
$14.65 AUD, exc GST

More Views

RS485 Shield
16.12 AUD

SKU: DFR0259

$16.12 AUD, inc GST
$14.65 AUD, exc GST

Retired Product

Introduction

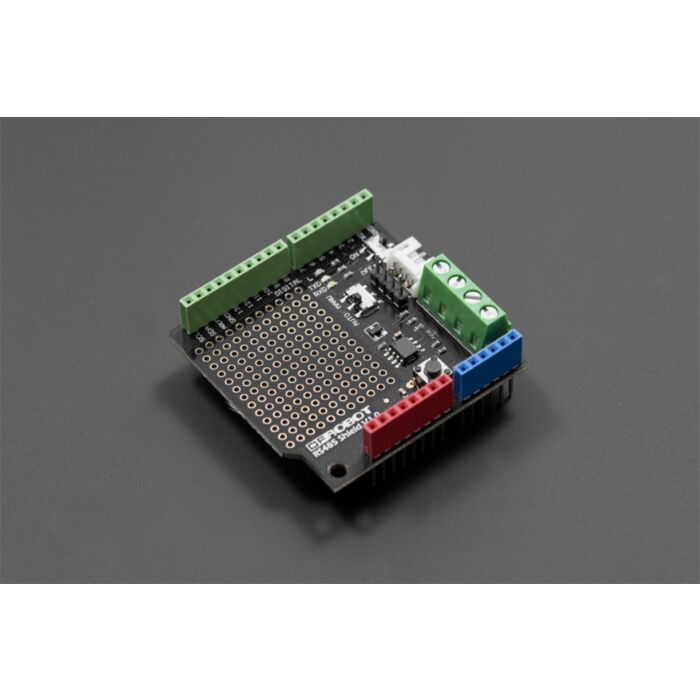

RS485 is an industrial standard for long dsitance, anti-interferrence and reliable communication.   So we create this RS485 shield, especially designed for the Arduino controller board. It can easily  convert UART/Serial protocol to RS485 protocol.  This board allows Arduino access to industrial standard protocol easily.
  • Integrated a standard RS485 port ,a mini RS485 port, RS485 headers
  • Provide the welding areas to make full use of the free space. And more importantly, it's convenient for your DIY design.
  • Switch between automatic mode and manual transmission mode, which expand the scope of application.
  • Besides Tx/Rx interface, there is a switch to block/disable this shield, when Arduino needs to be programmed.
  • Gold immersion PCB. Long pins on the back adapt to most Arduino controllers.



Specification

  • Power module: +5V
  • Module size: 55mmx53mm
  • 16 digital IO port (including a I2C interface)
  • 6 analog IO port and power
  • Operation and programming mode switch
  • Automatic and manual transceiver mode switch (When in manual transceiver mode, the enable end is the 2nd digital IO port)
  • Transceiver indicating LED
  • Standard RS485 interface, mini RS485 interface and RS485 pins
  • Welding area
  • Reset switch
  • PH2.0 sensor interface for DFRobot RS485 series sensor: URM04 Ultrasonic sensor

Documents

Parts List

  • RS485 shield     x1
