Uno R3

SKU: CE05629

$12.00 AUD, inc GST
$10.91 AUD, exc GST

More Views

Uno R3
12 AUD

SKU: CE05629

$12.00 AUD, inc GST
$10.91 AUD, exc GST
50 reviews 0 5 5
Shipping Offer

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $9.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

If you're new to Arduino®, then check out our free online course where we step you through from the basics up to some advanced coding and electronics concepts.

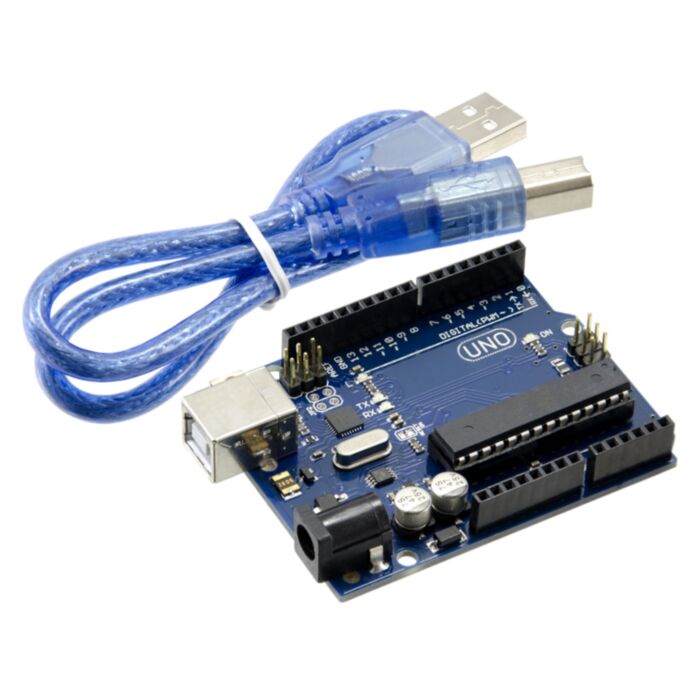

The Uno r3 is a microcontroller board based on the ATmega328 chip from MicroChip. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analogue inputs, a 16 MHz crystal oscillator, a USB Type B connection, a DC Power Jack, an ICSP header, and a reset button.

It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter (you'll need one with a standard 5.5mm DC Barrel Jack connection) or battery to get started.

This is the latest revision of Uno and features stronger reset circuit and 16U2 microcontroller instead of the 8U2.

What you get:

  • 1 x Uno R3 Board
  • 1 x USB Cable for PC connection

Features:

  • This board is a generic variant, built from the open source Arduino® Uno R3 design. It is a compatible replacement for the official Arduino® Uno, however, we recommend and guarantee that only the official variant will work with all Arduino® educational resources wherever it is referenced. Buying official also supports the creators and their future innovations.
  • Microcontroller: ATmega328 (datasheet)
  • Operating Voltage: 5V
  • Input Voltage (recommended): 7-12V
  • Input Voltage (limits): 6-20V
  • Digital I/O Pins: 14 (of which 6 provide PWM output)
  • Analogue Input Pins: 6
  • DC Current per I/O Pin: 40 mA
  • DC Current for 3.3V Pin: 50 mA
  • Flash Memory: 32 KB (ATmega328) of which 0.5 KB used by bootloader
  • SRAM: 2 KB (ATmega328)
  • EEPROM: 1 KB (ATmega328)
  • Clock Speed: 16 MHz

Arduino® is a trademark of Arduino AG.

This product is listed in:

Documentation and Resources:
Educational Workshops
  • Arduino Workshop for Beginners
  • Welcome to the Arduino Workshop, where you'll be able to follow our guided course which covers everything you'll need to know in order to create your own Arduino projects and become a leveled up maker. My name is Sam and along with being a maker my...
  • C Programming for Makers
  • Welcome to the C Programming Workshop for Makers! Here you'll be able to follow along with our series of easily digestible videos that cover everything you'll need to know to on your way with C programming and start making awesome projects. As you pr...
  • My ghostbusters proton pack
  • Hi all. Thought I'd share with you my modded Spirit Halloween proton pack. It's about 80% scale, which is plenty big enough for my 7-year-old son, and still looks decently sized on adults. As soon as I learned of this pack, 5-year-old me just had to get one. And I had just gotten my Arduino beginners kit a week earlier. I knew what had to be done :)...
  • Handheld UV Meter
  • UV is important to reptiles (and people) in processing vitamin D3 which is needed to absorb calcium. Without it reptiles often suffer from Metabolic Bone Disease (MBD) which leads to weak bones and can be fatal. Thankfully, pet shops have the answer, UV producing globes which can stave off the dreaded MBD. These are in the form of T8 florescent tubes or compact florescent globes and go for $50+ each. And, yeah, they need to be re...
  • Tabot
  • Tabot is a robotic tablet dispenser. It is designed to help elderly people maintain their independence and help anyone who has tablets remember to take them on time.
  • Cosplay Blaster
  • Hey guys! First time poster. I've been working on a blaster for my girlfriend's costume, and I thought I would share it with everyone. When triggered, it plays a selected sound effect and flashes the light. Pretty simple :)
  • Coffee Grinder With Arduino
  • Using a few bits and pieces, this ordinary coffee grinder now has two presets to run the motor for a programmable length of time. The idea being that the grinder running for a set amount of time will deliver a certain amount of coffee each button press meaning the beans can be stored unground, keeping them fresher for longer. I completed this project for a friend, Ian, who lives for coffee. Ian wanted the same functionality in h...

Product Comments


Customer Reviews

  1. Review by Matthew verified purchaser
    Rating
    100

    Fast tracked shipping, Packed very well (taped the bubble wrap to the inside of the box so all items did not rattle together). These are a great little unit! If you are prototyping or just starting with Arduino, these work perfectly. Once you are comfortable with not blowing up your micro-controller, fork out the extra for the Genuine if you wish.
    I was using these for a CNC mill project and one of the stepper drivers had a short in it which in turn, blew up my uno R2 (previously from core-electronics:( . No problem, just grab another one from core-electronics, hell, I even grabbed 2 just in case!
    (Posted on 11/10/2018)

  2. Review by Ashwin verified purchaser
    Rating
    100

    This is the genuine article. While you can buy compatible boards for a lot less and you can even make your own Arduino from scratch using a breadboard and component parts, there is something to be said for the original. The quality is amazing. Whether it is worth paying the extra is something that is harder to say. There is after all a considerable price differential. (Posted on 2/10/2018)

  3. Review by Abram verified purchaser
    Rating
    100

    Great! Works just like the genuine arduino but costs a third of the price. It works really well with the arduino software and does the job perfectly! The only difference is the colour and the fact that it doesn't have "ARDUINO" written on it. (Posted on 13/09/2018)

  4. Review by Geoff verified purchaser
    Rating
    100

    Arrived quickly and was as described. Now I just need some time to get to use it (Posted on 8/08/2018)

  5. Review by Louis verified purchaser
    Rating
    100

    Very cheap compared to other stores. Came in time and worked perfectly. Much cheaper alternative from the original arduino and the cable that comes with it is a bonus (Posted on 2/08/2018)

  6. Review by Dan verified purchaser
    Rating
    100

    Great for the price. (Posted on 3/07/2018)

  7. Review by Chris verified purchaser
    Rating
    100

    I have a couple of Genuine Arduinos already - thought I'd see what the difference was :) (Posted on 26/06/2018)

  8. Review by Stephen verified purchaser
    Rating
    100

    Top quality product, better than expected. (Posted on 19/06/2018)

  9. Review by Vincent verified purchaser
    Rating
    100

    Perfect clone of the Uno - works and even looks exactly the same. Fast and great service on top as well. (Posted on 18/06/2018)

  10. Review by Ryan verified purchaser
    Rating
    100

    A great little UNO at the perfect price for use with Yr9 extension science students. The boards are robust and but up with responsible student abuse :) (Posted on 29/05/2018)

  11. Review by Justin verified purchaser
    Rating
    100

    Works perfectly with the Arduino IDE. Can't beat it for bang for buck. (Posted on 18/05/2018)

  12. Review by Ryan verified purchaser
    Rating
    100

    Good quality arduino (Posted on 7/05/2018)

  13. Review by Erik verified purchaser
    Rating
    100

    Great price, performs as advertised. (Posted on 3/05/2018)

  14. Review by Paul verified purchaser
    Rating
    100

    Australian stock and very competitively priced. (Posted on 30/04/2018)

  15. Review by Harry verified purchaser
    Rating
    100

    Really happy with this! The shipping was cheap but also very fast and the customer service was excellent! (Posted on 12/04/2018)

  16. Review by Harry verified purchaser
    Rating
    100

    Really happy with this! The shipping was cheap but also very fast and the customer service was excellent! (Posted on 12/04/2018)

  17. Review by Dylan verified purchaser
    Rating
    100

    Good value and works great with grbl (Posted on 28/03/2018)

  18. Review by alan verified purchaser
    Rating
    100

    cable faulty. (Posted on 23/12/2017)

  19. Review by Daniel verified purchaser
    Rating
    100

    Awesome price for a generic micro controller! (Posted on 1/12/2017)

  20. Review by Dennis verified purchaser
    Rating
    100

    Great little device, I was apprehensive at first about buying a compatible unit but it works really well. It was delivered extremely quickly. The whole experience with Core Electronics has been exceptional. (Posted on 9/10/2017)

  21. Review by John verified purchaser
    Rating
    100

    Nice quality Uno compatible at an amazing price. (Posted on 3/10/2017)

  22. Review by Andrew verified purchaser
    Rating
    100

    Excellent. Indistinguishable from the original (uno). I have both versions and have done extensive work on both. I use the cheaper version for the more 'dangerous' experiments due to overloads and burnouts - which then can be discarded without feeling the pinch. But otherwise, I use both for all my other experiments. (Posted on 29/09/2017)

  23. Review by Jason verified purchaser
    Rating
    100

    Got exactly what I ordered with this board. It works perfectly with the software, had a program uploaded within 5 minutes of taking it out of the packaging. Was shipped promptly. Excellent service. (Posted on 27/06/2017)

  24. Review by Chris verified purchaser
    Rating
    80

    A great cheaper version of the Arduino brand Uno. Not having the numbers printed on the headers is a minor inconvenience. (Posted on 19/04/2017)

  25. Review by Graham verified purchaser
    Rating
    100

    Firstly I received great service and the item arrived well packed and in good condition, after programming the unit
    it ran as expected and I am looking forward to purchasing more in the future. (Posted on 31/01/2017)

  26. Review by Dave verified purchaser
    Rating
    100

    I'm a little disappointed. Our application is to build a time-sensitive instrument and the Ceralock resonator in the Genuine Uno is not adequate. When I saw "a 16 MHz crystal oscillator" in the Uno R3 (Arduino-Compatible blurb I grabbed a one.
    However the crystal is for the USB controller, and the processor still uses a Ceralock Resonator.
    So IMHO the blurb is a little misleading.
    Having said all this, the device I received certainly looks well made and is compatible to the Genuine Uno, but neither are suitable for my task.
    for more info see:- http://www.kuriwaobservatory.com/SEXTA/SEXTA.html
    (Posted on 18/11/2016)

  27. Review by Greg verified purchaser
    Rating
    100

    Well made (Posted on 23/10/2016)

  28. Review by Rick verified purchaser
    Rating
    100

    Cheap! You will never know the difference. (Posted on 10/10/2016)

  29. Review by Cliff verified purchaser
    Rating
    100

    Item as described, well packaged and fast delivery. Great product and great service. Very Happy! As good as the real thing, no issues at all. (Posted on 20/09/2016)

  30. Review by Ian verified purchaser
    Rating
    80

    Straight out of the packet and into the robot. Works like a charm. A very affordable option for duplicate UNO boards.

    The QC is not quite as good as a DF Robot UNO but certainly acceptable. (Posted on 7/09/2016)

  31. Review by Daniel verified purchaser
    Rating
    100

    Just Fantastic! I started automating few things at home and I couldn't believe how easy it is to use this guy. Very impressed. (Posted on 23/08/2016)

  32. Review by Sam verified purchaser
    Rating
    100

    This is exactly what it says on the tin, and it certainly works. I've had a little trouble interfacing it to a 3.3v device I'm trying to use, but that can be solved with a level translator.
    (Posted on 18/08/2016)

  33. Review by adam verified purchaser
    Rating
    100

    Works well, just like an Uno should. bought 4 and happy. (Posted on 9/08/2016)

  34. Review by Steve verified purchaser
    Rating
    100

    Price is right, compatibility is right. Working as expected without a glitch. (Posted on 19/06/2016)

  35. Review by Ray verified purchaser
    Rating
    100

    These are very reliable clones and good value at the price. (Posted on 10/06/2016)

  36. Review by Ciaran verified purchaser
    Rating
    100

    An excellent, low-cost alternative to the Arduino branded Uno. (Posted on 25/05/2016)

  37. Review by good - Good
    Rating
    100

    good (Posted on 21/04/2015)

  38. Review by Naga - Good
    Rating
    100

    Good (Posted on 13/02/2015)

  39. Review by Neil - A computer for less than a packet of smokes. verified purchaser
    Rating
    100

    It is a full UNO for less than a pack of smokes. Maybe its time to quit smoking and buy 7 of these a week. Great product for the price. Definitely not the build quality of a official Arduino but does exactly the same thing so great as a learning tool and also when you are building toys for your kids.

    Recommend this fully. (Posted on 8/10/2014)

  40. Review by Paul - great product and customer service, will buy again verified purchaser
    Rating
    100

    great product and customer service, will buy again (Posted on 1/09/2014)

  41. Review by Paul - great product and customer service, will buy again verified purchaser
    Rating
    100

    great product and customer service, will buy again (Posted on 1/09/2014)

  42. Review by ROB - fast delivery - great product verified purchaser
    Rating
    100

    i purchased a similar product from Jaycar called freetronics .. i like jaycar products quite a lot .. but this unit is more reliable and i've had no failures.. it's used to control a solar pump and blower pump for a spa .. it works beautifully :) no doubt i'll purchase more in near future ... for many other projects..

    Core great job!! (Posted on 12/07/2014)

  43. Review by Shane - As good as the genuine item! verified purchaser
    Rating
    100

    Fit, form and function of the original at a much more reasonable price. I've been using a few of these in some short term projects and they haven't missed a beat. Very happy.

    Top marks for great service and speedy delivery. (Posted on 9/07/2014)

  44. Review by John - Superb product, delivered on time and at the right price verified purchaser
    Rating
    100

    I bought two when I found the CORE website and both are in full service. One powers a data logger collecting corrosion information, the other schedules a display for advertising. Keep them coming Graham. Thanks
    John B (Posted on 9/04/2014)

  45. Review by Rob - Chinese prices with Australian shipping
    Rating
    100

    I bought 40 of these for my school and they all work perfectly. Great product. (Posted on 18/02/2014)

  46. Review by Bruce - Performs well, at a great price verified purchaser
    Rating
    100

    Had no problems with this board, worked straight out of the box, and you cant beat the price. (Posted on 31/12/2013)

  47. Review by Blanca - Great and cheap
    Rating
    100

    It was the cheapest I could find in Australia, in fact I found some Arduinos for 4 times that price! And this one is just perfect. As described, very fast shipment and great costumer support. Recommended! (Posted on 3/11/2013)

  48. Review by Justin - You'll be back for more! verified purchaser
    Rating
    100

    I've now bought several of these units. The boards have performed flawlessly. The price is fantastic in addition to the prompt service and dispatch. This is a great buy and I'll guarantee you'll be back for more. (Posted on 25/10/2013)

  49. Review by David - Fantastic item verified purchaser
    Rating
    100

    Amongst the cheapest costing Arduino clones on the market, yet solid in design. Arrived in just a few days and worked perfectly. Great product and fantastic service. I'll be buying from here again. (Posted on 1/10/2013)

  50. Review by John - My first experience and I enjoyed it! verified purchaser
    Rating
    100

    Necessity is the mother of invention and I have the need for the basis of a data logger...........my generation made things themselves.
    This clone fitted the bill exactly allowing me to experiment and to achieve the required outcome. I bought two and they worked as described directly out of the packet. The cable per item was a bonus. Thanks and I will be back. The ease of ordering, checking and mail receipt is excellent. Support Aussy entrepreneurs. Thanks again. (Posted on 20/09/2013)
