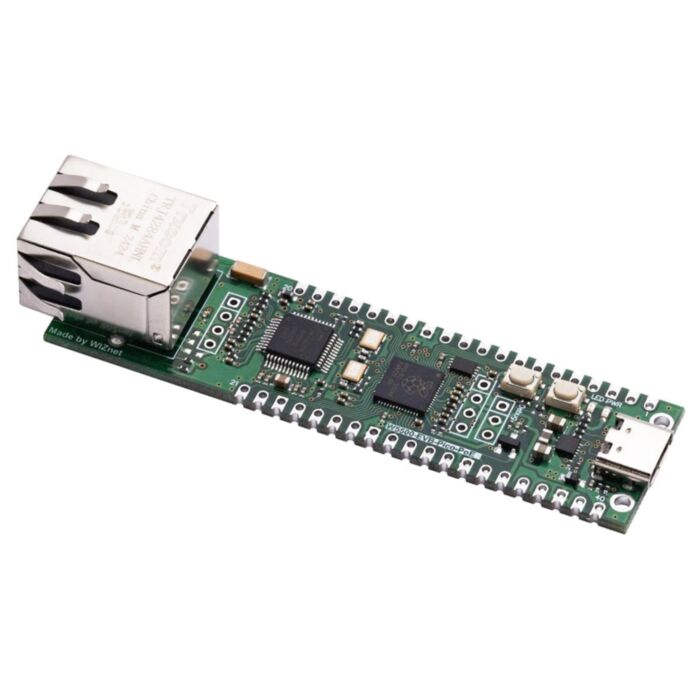

WIZnet W5500 Pico Board - Ethernet & PoE Ready
Out of Stock
Sign up to get notified when it's available to order.
The WIZnet W5500-EVB-Pico-PoE board combines the powerful RP2040 microcontroller with built-in Ethernet capabilities and Power over Ethernet (PoE) support, making it an ideal solution for networked IoT projects and educational environments. This versatile development board maintains full Raspberry Pi Pico compatibility while adding essential networking features through the W5500 hardwired TCP/IP controller.
Key Features- RP2040 dual-core Cortex M0+ microcontroller running at up to 133MHz
- 2MB Flash memory and 264KB SRAM for robust program storage
- Integrated W5500 Ethernet controller supporting TCP/IP, UDP, ICMP, IPv4, ARP, IGMP, and PPPoE protocols
- 8 independent hardware sockets for simultaneous network connections
- 32KB internal memory buffer for efficient TX/RX operations
- USB-C connector for power and programming
- Built-in RJ45 port with PoE capability (requires optional PoE module)
- Pin-compatible with Raspberry Pi Pico for easy integration with existing projects
The W5500-EVB-Pico-PoE integrates seamlessly into existing development workflows:
Network Configuration
- Connect the board via Ethernet using the built-in RJ45 port
- For PoE functionality, install the optional PoE module (sold separately)
- Configure network settings using the provided software libraries
Programming Interface
- Upload code via USB-C using standard RP2040 development tools
- Supports multiple programming languages including C/C++, CircuitPython, and MicroPython
- Access extensive example code for various networking applications
The following GPIO pins are reserved for W5500 communication:
| GPIO Pin | Function |
|---|---|
| GPIO16 | MISO |
| GPIO17 | CSn |
| GPIO18 | SCLK |
| GPIO19 | MOSI |
| GPIO20 | RSTn |
| GPIO21 | INTn |
- 1x W5500-EVB-Pico-PoE board
- Software: Compatible with Arduino IDE, CircuitPython, MicroPython, and C/C++ development environments
- Hardware: Pin-compatible with Raspberry Pi Pico accessories and shields (excluding reserved GPIO pins)
- Power Supply: 4.3V to 5.5V via USB-C or PoE
- Product Documentation
- Example Code:
- RP2040 Datasheet
- W5500 Overview
- Schematic
WIZnet is a leading provider of embedded Internet connectivity solutions, specialising in hardwired TCP/IP semiconductors and modules. Their W5500 chip series has become an industry standard for reliable Ethernet connectivity in embedded systems, offering robust networking capabilities for IoT and industrial applications. The company's commitment to open-source hardware and comprehensive documentation makes their products particularly suitable for educational and development environments.
