WIZnet W5100S Ethernet HAT for Raspberry Pi Pico

Rating:
100% of 100
SKU: CE08655 Brand: Core Electronics
Add ethernet connectivity to your projects with this Pico compatible shield!
$9.95 AUD, inc GST
$9.05 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 2nd of Apr

Quantity Discounts:

  • 10+ $8.91 (exc GST)
- +

14 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

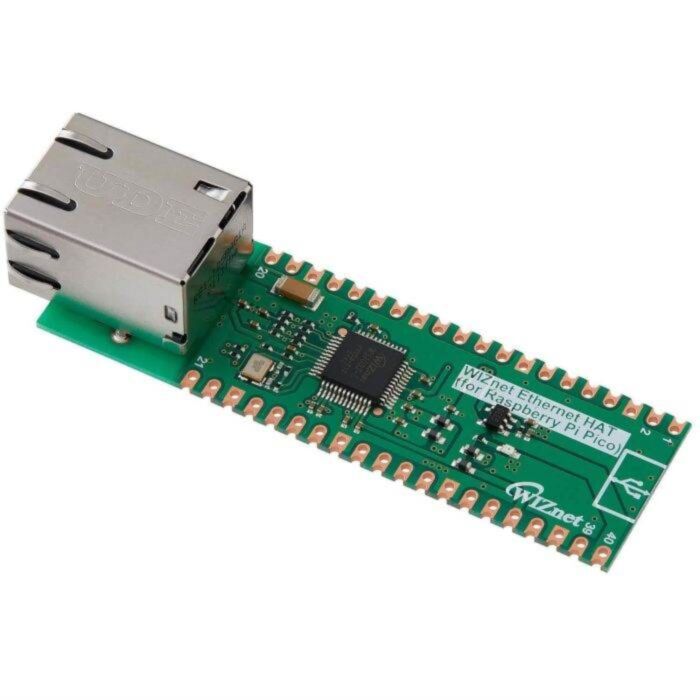

Add ethernet connectivity to your projects with this Pico compatible shield, featuring the WIZnet W5100S TCP/IP ethernet controller.

Note: Soldering is required to attach headers for connection to your Pico.

Features

  • Pin compatible with the Raspberry Pi Pico
  • Includes W5100S
    • Supports Hardwired Internet Protocols: TCP, UDP, WOL over UDP, ICMP, IGMPv1/v2, IPv4, ARP, PPPoE
    • Supports 4 Independent Hardware SOCKETs simultaneously
    • Internal 16 Kbytes Memory for TX/ RX Buffers
  • Flexible Operating Voltage
    • Built-in regulator allows power supply of 4.3~5.5V or power the 3.3V rail directly
  • SPI Interface
    • 5V I/O tolerance
  • 10 / 100 Ethernet PHY embedded
  • Supports Auto Negotiation
    • Full / Half Duplex
    • 10 / 100 Based
  • Built-in RJ45 connector

Pin Usage

I/O Pin Name Description
Power VBUS Power supply, 4.3~5.5 Voltage
Power 3V3 Power supply, 3.3 Voltage
Power GND Power ground
Input INTn W5100S Interrupt : Low activity.
Input RSTn W5100S Reset : Low activity
Input SPI0 TX SPI MOSI (Master Out Slave In)
Input SPI0 SCK SPI Clock
Input SPI0 CSn SPI Slave Select
Output SPI0 RX SPI MISO(Master In Slave Out)
