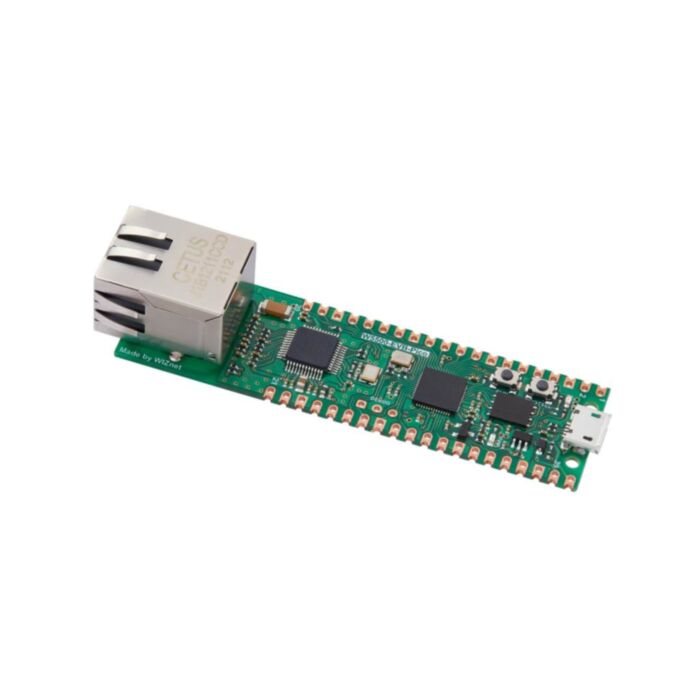

WIZnet W5500-EVB-Pico featuring the RP2040

Rating:
100% of 100
SKU: CE08654 Brand: Core Electronics
Add ethernet connectivity to your projects with this RP2040 enabled development board!
$20.20 AUD, inc GST
$18.36 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 24th of Dec

Quantity Discounts:

  • 10-25 $17.63 (exc GST)
  • 25+ $17.08 (exc GST)
- +

127 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Add ethernet connectivity to your projects with this RP2040-enabled development board, the WIZnet W5500 TCP/IP controller.

Features

  • A pin-compatible dev board (some pins are used by the WiFi module, pinout below)
  • All of the same features that you are used to when using the Raspberry Pi Pico(Check out the product page for details)
  • 2MB of flash for the RP2040
  • All open source!
  • Includes W5500
    • Supports Hardwired Internet Protocols: TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
    • Supports 8 Independent Hardware SOCKETs simultaneously
    • Internal 32 Kbytes Memory for TX/ RX Buffers
    • Supports High-Speed Serial Peripheral Interface(SPI MODE 0, 3)
  • 40 pin 21x51 'DIP' style 1mm thick PCB with 0.1" through-hole pins also with edge castellations
  • 3-pin ARM Serial Wire Debug (SWD) port
  • 10 / 100 Ethernet PHY embedded
  • Supports Auto-Negotiation
    • Full / Half Duplex
    • 10 / 100 Based
  • Built-in RJ45
  • Built-in LDO

Pin Usage

W5500 pins are directly connected to the GPIO of RP2040 as shown in the product pictures above. It has the same pinout as the Raspberry Pi Pico board. However, GPIO16, GPIO17, GPIO18, GPIO19, GPIO20, and GPIO21 are connected to W5500 inside the board. These pins enable SPI communication with W5500.

I/O PIN NAME DESCRIPTION
I GPIO16 Connected to MISO on W5500
O GPIO17 Connected to CSn on W5500
O GPIO18 Connected to SCLK on W5500
O GPIO19 Connected to MOSI on W5500
O GPIO20 Connected to RSTn on W5500
I GPIO21 Connected to INTn on W5500
I GPIO24 VBUS sense – high if VBUS is present, else low
O GPIO25 Connected to user LED
I GPIO29 Used in ADC mode (ADC3) to measure VSYS/3

Resources

Technical documentation

Examples
