WIZnet PoE Power Module for Raspberry Pi Pico

SKU: TPH-106092 Brand: The Pi Hut
Discover the WIZnet WIZPoE-P1 module, an IEEE802.3af compliant Power over Ethernet solution delivering up to 7W of power to Raspberry Pi Pico and compatible WIZnet boards through standard Ethernet cables.
$14.38 AUD, inc GST
$13.07 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 30 and Jan 06

- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

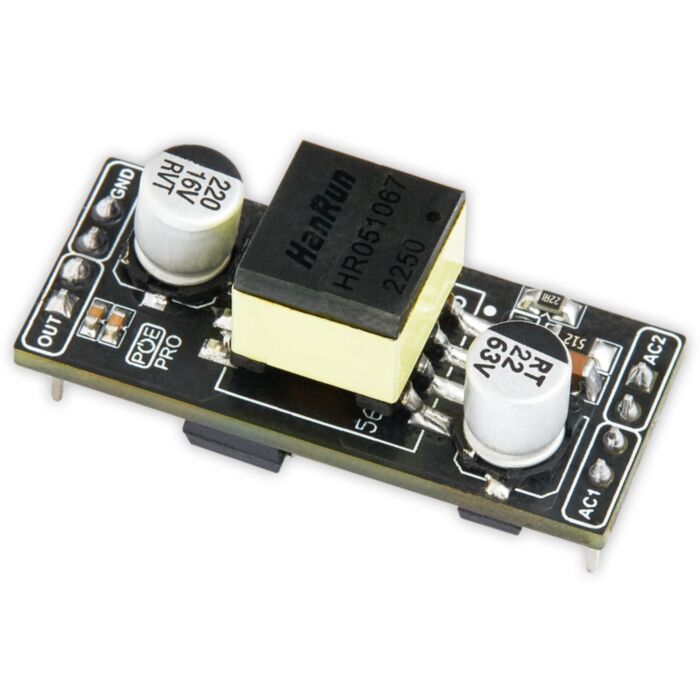

The WIZnet WIZPoE-P1 module is an advanced IEEE802.3af-compliant Power over Ethernet solution engineered for seamless integration with Raspberry Pi Pico and WIZnet development boards. This versatile module enables power delivery of up to 7W through standard Ethernet cables, eliminating the need for separate power supplies while maintaining data connectivity.

Key Features
  • IEEE802.3af compliance ensures broad compatibility with PoE infrastructure
  • Dual-mode operation supporting both Mode A (Endspan) and Mode B (Midspan)
  • Wide input voltage range from 40V to 60V DC
  • High-efficiency DC/DC conversion up to 90%
  • Built-in electrical isolation for enhanced device protection
  • Integrated 2-channel bridge rectifiers for simplified circuit design

Technical Specifications

Parameter Min Typical Max Units
Input Voltage 41 48 61 V
Output Voltage 4.75 5 5.25 V
Output Power - 8 - W
Efficiency @80% Load 70 80 90 %

How to Use

Installation of the WIZPoE-P1 module is straightforward and can be accomplished by connecting it to a compatible WIZnet EVB-Pico board. The module interfaces directly with the board's power input pins, while the Ethernet connection provides both data and power through a single cable. For optimal performance, pair with an Adafruit 5V 1.8A Isolated Output PoE Module or similar PoE injector.

Compatibility

The WIZPoE-P1 module is designed to work seamlessly with the following WIZnet development boards:

  • W55RP20-EVB-Pico
  • W5500-EVB-Pico-PoE
  • W5100S-EVB-Pico2
  • W5500-EVB-Pico2
  • W6100-EVB-Pico2
  • Surf 5

What's in the Box

  • 1x WIZnet WIZPoE-P1 module

Note: EVB-Pico board not included

Resources
