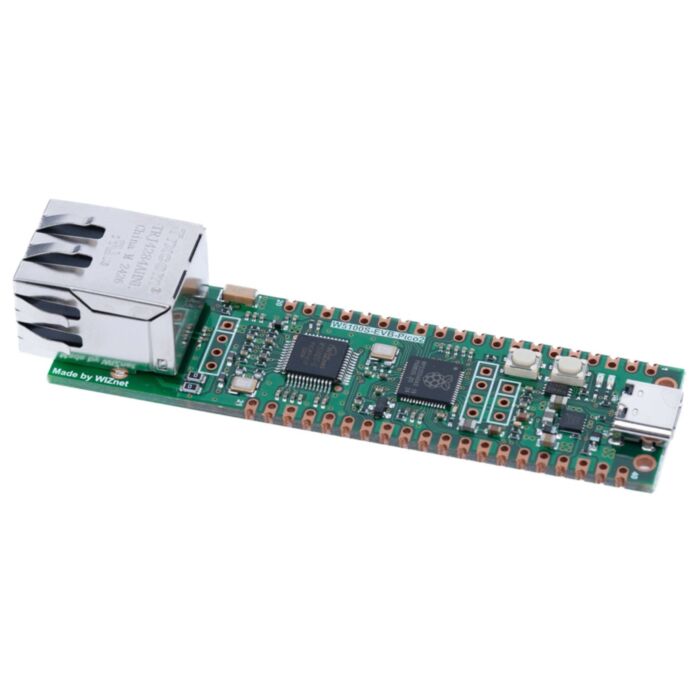

WIZnet W5100S Pico Board with Ethernet

SKU: TPH-106076 Brand: The Pi Hut

Explore the WIZnet W5100S-EVB-Pico2, a Raspberry Pi RP2350-based microcontroller board featuring built-in Ethernet connectivity, USB-C, and full TCP/IP support with programmable GPIO pins for your IoT projects.

Special Price $18.69 AUD, inc GST

Regular Price $24.86 AUD, inc GST

$16.99 AUD, exc GST

Special pricing ends 21 February 2025

* this special may end earlier than shown

Out of Stock

The WIZnet W5100S-EVB-Pico2 combines the powerful Raspberry Pi RP2350 microcontroller with hardwired TCP/IP networking capabilities, creating an ideal platform for Internet of Things (IoT) development and networked automation projects. This versatile board enhances the popular Raspberry Pi Pico form factor by integrating robust Ethernet connectivity through the W5100S controller, while maintaining compatibility with existing Pico hardware and software ecosystems.

Key Features

Dual-core ARM Cortex-M33 processor running at up to 150MHz
520kB multi-bank SRAM and 16Mbit integrated Flash memory
Hardwired TCP/IP controller supporting multiple internet protocols
4 independent hardware SOCKET connections
10/100 Mbps Ethernet with auto-negotiation
USB-C connectivity for power and programming
Optional PoE capability via WIZPoE-P1 PoE add-on module
Enhanced security features including TrustZone and secure boot capabilities
48 programmable GPIO pins (with specific pins reserved for Ethernet functionality)

How to Use

Setting up the W5100S-EVB-Pico2 is straightforward:

Connect the board via USB-C for power and programming
Install the necessary development environment (MicroPython, C/C++, or Arduino IDE)
Connect an Ethernet cable to the onboard RJ45 port
Upload your code using the drag-and-drop programming interface

Note that GPIO pins 16-21 are reserved for Ethernet communication:

GPIO Pin	Function
GPIO16	MISO
GPIO17	CSn
GPIO18	SCLK
GPIO19	MOSI
GPIO20	RSTn
GPIO21	INTn

What's in the Box

1x WIZnet W5100S-EVB-Pico2 board

Compatibility

The W5100S-EVB-Pico2 maintains pin compatibility with the Raspberry Pi Pico 2, making it suitable for existing Pico projects that require network connectivity. For projects requiring wireless capabilities instead of Ethernet, consider the WIZnet WizFi360-EVB-Pico.

Additional Resources

Comprehensive documentation and datasheets
Example firmware for various applications:
- Ethernet Examples
- AWS Examples
- Azure Examples
- LwIP Examples
Board schematics and Gerber files
Certification documentation (CE, FCC)

About WIZnet

WIZnet is a leading provider of embedded Internet connectivity solutions, known for their hardwired TCP/IP implementations and innovative networking solutions. Their technology enables reliable Internet connectivity in embedded systems, making them a trusted choice for industrial automation, IoT development, and educational applications worldwide.
