Makerverse Protoboard for Raspberry Pi Pico

Rating:
100% of 100
SKU: CE08228 Brand: Makerverse
CE Original
The centre of your next project. Mount your RPi Pico with headers, or solder directly to the protoboard.
$5.15 AUD, inc GST
$4.68 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Thu, 25th of Jul

Quantity Discounts:

  • 10-25 $3.94 (exc GST)
  • 25+ $3.37 (exc GST)
  • 100+ $2.81 (exc GST)
- +

293 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

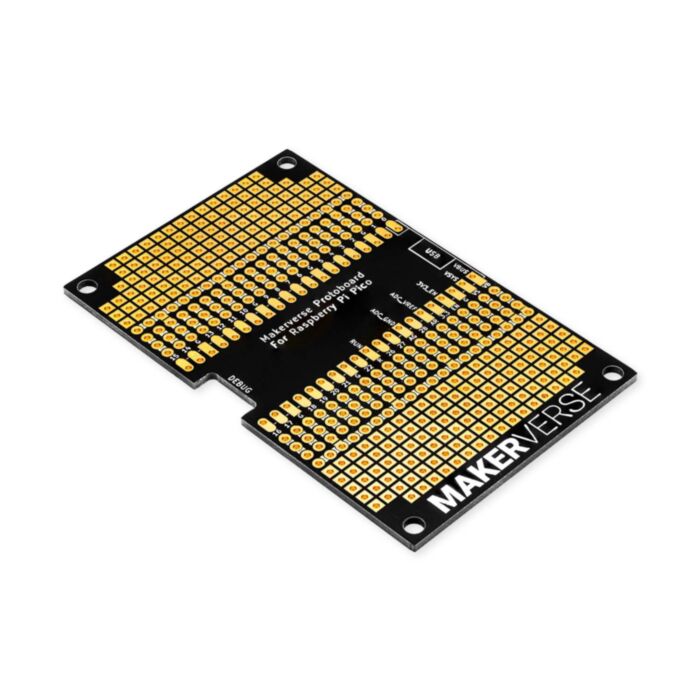

The Makerverse™ Protoboard for Raspberry Pi Pico is the centre of your next project. Your Pico can be mounted with male+female headers, or surface-mount soldered directly to the protoboard for the lowest profile. Each GPIO is broken out to three pads, and there's a selectable power rail (3.3 or VBUS). Ground pads may be easily bridged to the adjacent rail like a solder jumper. Since many modern components are only available in SMT packages, the Protoboard features a handy SMT prototyping area underneath the Pico.

Get started by soldering your Pico to the Protoboard, making sure the USB connector is sitting on top of the "USB" label. You can double-check the orientation is correct by comparing the GPIO numbering. To connect power to the rail, solder the VBUS or 3.3V jumper (but never both!)

  • Breaks out every GPIO to three labelled pads
  • Selectable power rails make distributing power easy.
  • Point-to-point prototyping area
  • SMT prototyping area
  • Gold finish - solders beautifully
  • Consistent design - stackable onto other Makerverse protoboards
  • Manufactured and supported in Australia by Core Electronics

Technical Specifications

  • Dimensions: 52 x 83mm
  • Mounting Holes: 4x M3 Holes, 46x77mm pattern
  • Plated through-holes: 1mm diameter
  • SMT prototyping pads suitable for 1.27mm pitch components and most passives
  • Debug pins remain accessible and unconnected when surface-mount soldered
  • Finish: ENIG Gold

Resources

Makerverse Overview

Makerverse hardware is designed for makers, by makers. We're making the tools and modules we think are the most useful to electronics enthusiasts and people that just want to get their projects done. As experienced makers ourselves, we're building in the features and design considerations that we find most valuable and have wished for in other modules.

All Makerverse devices are products designed by our team in Newcastle Australia. We manufacture the modules here as well.

"Makerverse" and the Makerverse Logo are trademarks of Core Electronics Pty Ltd.
