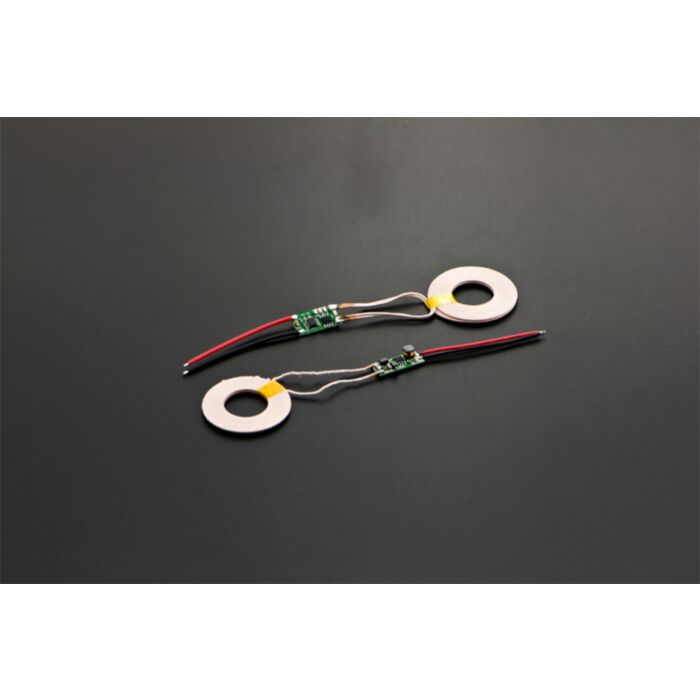

Wireless Charging Module 5V/1A

SKU: DFR0362

$13.14 AUD, inc GST
$11.95 AUD, exc GST

More Views

Wireless Charging Module 5V/1A
13.14 AUD

SKU: DFR0362

$13.14 AUD, inc GST
$11.95 AUD, exc GST


  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.


Wireless charging uses an electromagnetic field to transfer energy between two objects. This is usually done with a charging station. Energy is sent through an inductive coupling to an electrical device, which can then use that energy to charge batteries or run the device.

This is a new wireless charging module, which oculd provides [email protected] (MAX 600mA) power output. It is using the new technology "resonant magnetic coupling, which will reduce the electricity consumption during power transmission. The transfer efficiency could arrive 90%. It could meet your most project requests.

5V/300mA also available (DFR0362)


  • Stable Power Supply
  • Insulation Coil
  • Compact Design


  • Operating Voltage (Input): 5V
  • Operating Voltage (Output): [email protected] (Max: 1.2A)
  • Transmitting Terminal Size: 43mm(Outer diameter)*20mm(Inside diameter)*2.3mm(Thickness)
  • Receiving Terminal Size: 43mm(Outer diameter)*20mm(Inside diameter)*2.3mm(Thickness)
  • Operating Distance: 2-10mm


Parts List

  • Transmitting Eodule  x1
  • Receiving Eodule  x1
