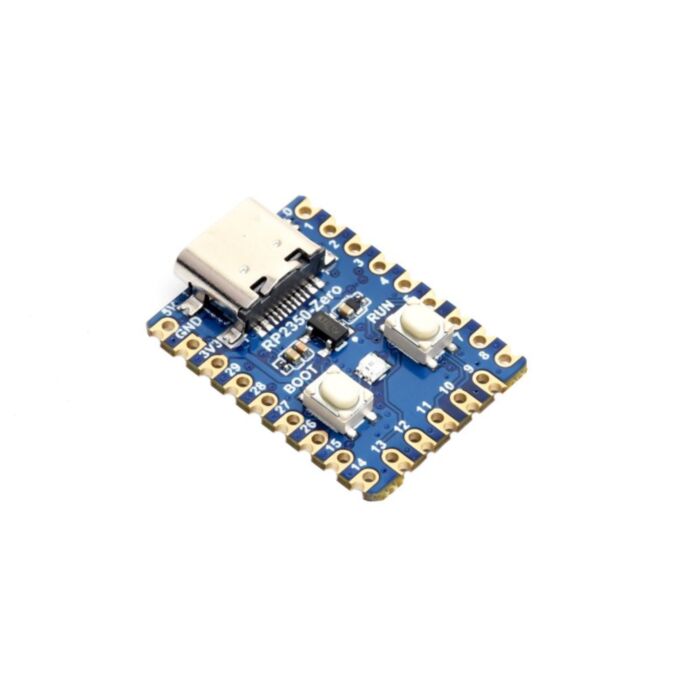

Waveshare RP2350-Zero Mini

SKU: WS-28816 Brand: Waveshare
Waveshare RP2350-Zero Mini Development Board, Raspberry Pi Microcontroller Development Board, Based On Raspberry Pi Dual-core & Dual-architecture...
$8.58 AUD, inc GST
$7.80 AUD, exc GST

Available with a lead time
Expect dispatch between Apr 10 and Apr 14

Quantity Discounts:

  • 10+ $7.49 (exc GST)
  • 25+ $7.25 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Waveshare RP2350-Zero Mini Development Board, Raspberry Pi Microcontroller Development Board, Based On Raspberry Pi Dual-core & Dual-architecture Microcontroller RP2350 MCU Board Zero

Specifications

  • RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom
  • Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz
  • 520KB of SRAM, and 4MB of on-board Flash memory
  • Type-C connector, keeps it up to date, easier to use
  • Castellated module allows soldering directly to carrier boards
  • USB 1.1 with device and host support
  • Low-power sleep and dormant modes
  • Drag-and-drop programming using mass storage over USB
  • 29 × multi-function GPIO pins (20× via edge pinout, others via solder points)
  • 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 24 × controllable PWM channels
  • Accurate clock and timer on-chip
  • Temperature sensor
  • Accelerated floating-point libraries on-chip
  • 12 × Programmable I/O (PIO) state machines for custom peripheral support

What's On Board

RP2350-Zero Mini Development Board, onboard components

  1. USB Type-C connector
    for program downloading, supports USB1.1 hosts and slave devices
  2. ME6217C33M5G
    Low dropout regulator, 800mA output (Max.)
  3. BOOT button
    Press it when resetting to enter download mode
  4. RUN reset button
  5. WS2812
    cool RGB LED
  6. P25Q32SH-UXH-IR
    4MB NOR-Flash
  7. RP2350A
    Dual-core and dual-architecture design, up to 150 MHz operating frequency
  8. RP2350A pins
    10x solder points, 9 of which are GPIO pins
  9. Debug pins

Dimensions

RP2350-Zero Mini Development Board, outline dimensions
