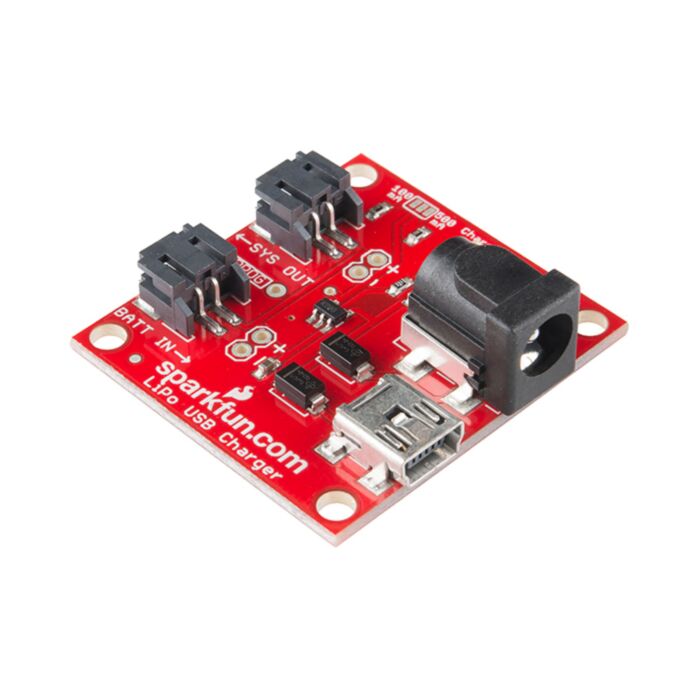

USB LiPoly Charger - Single Cell

SKU: PRT-12711 Brand: Sparkfun

If you need to charge LiPo batteries, this simple charger will do just that, and do it fast! The USB LiPo Charger is a basic charging circuit that allows you to charge 3.7V LiPo cells at a rate of 500mA or 100mA. It is designed to charge single-cell Li-Ion or Li-Polymer batteries.

$32.40 AUD, inc GST

$29.45 AUD, exc GST

Available with a lead time
Expect dispatch between Apr 29 and May 02

Quantity Discounts:

10+ $28.57 (exc GST)
25+ $27.98 (exc GST)

The board incorporates a charging circuit, status LED, selectable solder jumper for 500mA or 100mA charging current, external LED footprint, USB input, two pre-installed JST connectors for SYS OUT and BATT IN, and (back by popular demand) a barrel jack connector.

There is also a 'SYS OUT' with a pre-installed JST connector which allows you to connect the charging circuit directly to your project so you don't need to disconnect the charger each time you want to use it.

Documents:

Schematic
Eagle Files
Hookup Guide
Datasheet (MCP73831T)
GitHub (Design Files)

This product is listed in:

Power & Batteries>Battery Chargers
