LiPower - Boost Converter

SKU: PRT-10255

$22.78 AUD, inc GST
$20.71 AUD, exc GST

More Views

LiPower - Boost Converter
22.78 AUD

SKU: PRT-10255

$22.78 AUD, inc GST
$20.71 AUD, exc GST

View our maker favourites for this product which are likely to be a great alternative.

In stock, with a short lead time. 100 units dispatch in 3 to 6 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Tue, 2nd of Oct with Express Post within Australia.
Shipping Offer
OR
Brand: Sparkfun

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

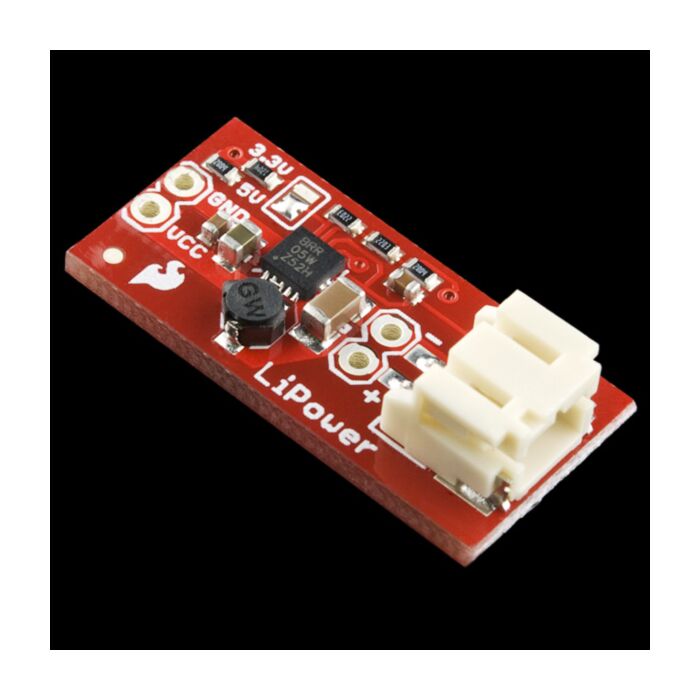

The LiPower board is based on the incredibly versatile TPS61200 boost converter. The board is configured to be used with a LiPo battery, has solder jumper selectable 5V and 3.3V output, and an under voltage protection of 2.6V. However, the board can also be used as a general purpose buck and boost regulator with an input voltage as low as 0.3V (default UVLO is 2.6V). With such a low input voltage and quiescent current , the board also works well in energy harvesting applications that use low input voltages.

Note: This board does not have reverse polarity protection, so please use the correct LiPo batteries (see related items below) or be sure to recognize the polarity if using your own input source.

Note: This product is a collaboration with Oleg of [email protected] A portion of each sales goes back to them for product support and continued development.

Features:

  • Input voltage 0.3-5.5V
  • Output voltage 3.3 or 5V
  • 5V @ 600mA max
  • 3.3V @ 200mA max
  • Undervoltage lock out at 2.6V
  • Quiescent current, less than 55uA
  • LiPo JST connector or 2-pin header power input\
  • Inductor: 4.7uH, 1.2A Sumida CDRH2D18
  • Over temperature protection

Documents:

Documentation and Resources:
