Lithium Battery Charger

Rating:

100% of 100

SKU: DFR0208 Brand: DFRobot

If you need to charge LiPo batteries, this simple charger will do just that, and do it fast! The Lithium Battery Charger can charge 3.7V LiPo battery at a rate of 500mA per hour.

$20.10 AUD, inc GST

$18.27 AUD, exc GST

Available with a lead time
Expect dispatch between Apr 30 and May 06

Quantity Discounts:

10-25 $17.73 (exc GST)
25+ $17.36 (exc GST)

It is best to disconnect this battery charger from your battery once it is fully charged. If power is lost the battery may begin to discharge back into the charger and drain your battery.

If you need to charge LiPo batteries, this simple charger will do just that, and do it fast! The Lithium Battery Charger can charge 3.7V LiPo battery at a rate of 500mA per hour. It is designed to charge single-cell Li-Ion or Li-Polymer batteries. Check the datasheet below to see if it will work with your battery.

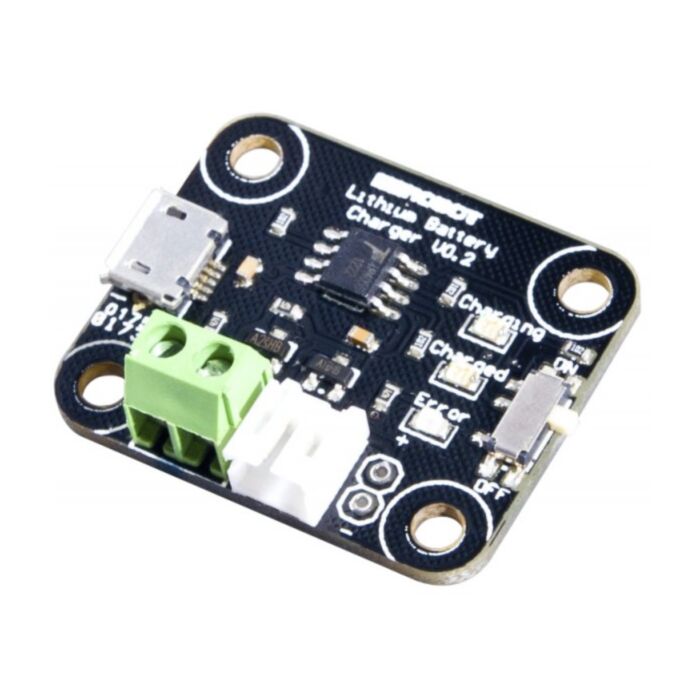

The board incorporates a charging circuit, status LED, connector for your battery (JST-type used in the batteries we carry), and a micro-USB connector. Four small mounting holes allows this charger to be easily embedded into a project.

Specification

Programmable Charge Current:Up to 1000mA
Constant-Current/Constant-Voltage
Types of battery:Single-cell Li-Ion or Li-Polymer batteries
Interface
- Charge from Micro USB
- JST-type or terminal connect to battey
With ON/OFF switch,3 status LEDs
Accuracy:1.5% @ Preset 4.2V Charge Voltage
C/10 Charge Termination
Operating Ambient Temperature:-40°C ~ 85°C
Size:3.2x2.7x1cm(1.26"x1.06"x0.39")

Optional Parts

Cables

Micro USB Cable(FIT0265)

Flat Noodle Micro USB Cable 1.2m(FIT0351-OE)

Projects

Project 1. Light of Earth - A BMI160 gyroscope accelerometer based 3D Printing Lamp
A light can be turned on by knocking on the table.
Material Lists:

Gravity: I2C BMI160 6-Axis Inertial Motion Sensor
Beetle - The Smallest Arduino
3.7v lithium battery charger
3.7v lithium battery
10 piranha lamp beads
A small amount of acrylic pigment (green, yellow, blue and brown; if gray and white pigment is provided, the oil paint does not need to be prepared)
Light gray and white oil paint
A good-looking 2-foot button (I bought it on Taobao)
Lead wire (2 mm) (If no, replace it with soft iron wire)
40 cm PVC hollow rod (I use the one with outer diameter 9 mm and inner diameter 5 mm)
A screw and nut with the length of 20mm

Project 2. How To Make A Smart Clock with ESP32?

I’ve always been dreaming of making a desktop clock which without complex functions, just smaller and can display time.

Hardware:

Gravity I2C OLED-2864 Display
Gravity: I2C Triple Axis Accelerometer
Beetle BLE - The smallest Arduino bluetooth
Lithium Battery Charger
3.7V Polymer Lithium Ion Battery - 1000mA
Shell (3D printing)
Black Acrylic Transparent Board

Project 3. A Christmas present for cute kid & girl - A Clever Rabbit Hat - an EMG sensor based
Things you may need in this project:

Gravity: Analog EMG Sensor by OYMotion ×1
Beetle - The Smallest Arduino ×1
Lithium Battery Charger ×1
3.7 V Lithium Battery ×1
9g 180° Micro Servo ×2
Rabbit Hat ×1
Needles and Thread
Two-step Toggle Switch ×1
Elastic (Width: 1.5cm Length: 40cm) ×1
Stick ×2
Hot Melt Adhesive

Project 4. Halloween pumpkin lamp made by micro:bit

How can a Halloween without a pumpkin lamp? The pumpkin lamp made of recently popular Microbit is a good choice.

Microbit *2
micro:bit Expansion Board for Boson (Gravity Compatible) *1
Digital RGB LED Strip 180 LED - (3m)(weatherproof) *1
3.7V battery *2
Lithium battery charger *1

Documents

Parts List

Lithium Battery Charge x1

This product is listed in:

Power & Batteries>Battery Chargers
