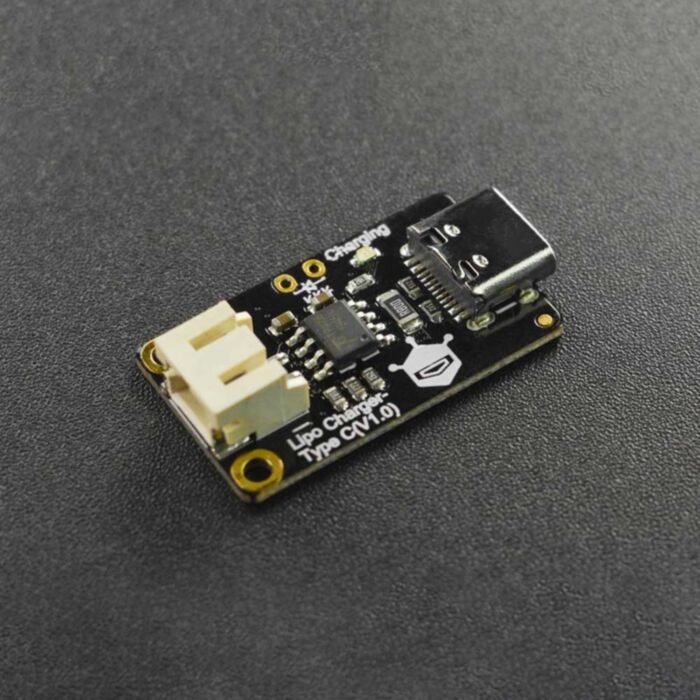

Lipo Charger-Type C

Rating:
100% of 100
SKU: DFR0668 Brand: DFRobot
This is a Type-C Lipo charger designed for single-cell 3.7V lithium battery. The compact size makes it easy to integrate into your applications. The charger adopts...
$10.05 AUD, inc GST
$9.14 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 28th of May

Quantity Discounts:

  • 10-25 $8.86 (exc GST)
  • 25+ $8.68 (exc GST)
- +

10 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This is a Type-C  Lipo charger designed for single-cell 3.7V lithium battery. The compact size makes it easy to integrate into your applications. The charger adopts TP4056X lithium battery charging IC, which guarantees you quick and safe charging, and also you can easily switch between 3 output currents (the default output current is 50mA) by selecting different bonding pads on the back. The thermal feedback inside the TP4056X can automatically adjust the charging current to limit the chip temperature under high power operation or high ambient temperature conditions.

Plug this charger into power source via its Type-C port, the LED on the charger will flash when no battery is not connected; keep on when charging and go off when the battery is fully charged. So, this LED will consume nothing of your battery. Besides, you can also connect an external indicator, which allows you to easily check the charging status when this module is integrated into your projects.

There are 3 charging stages provided: trickle charge, constant current charge, and constant voltage charge, which guarantee the safety and save the charging time.

Note: The low-current mode can charge large-capacity batteries, but the high-current gear cannot charge small-capacity batteries. If the charging current is too large, it may cause the battery explosion.

Battery Capacity

Recommended Charging Gear

100-400mAh

50mA

400-1000mAh

200mA

1000mAh above

500mA

Features

  • Multiple current output modes(50/200/500mA)
  • Mini size
  • External indicator available
  • Safe and quick charging

Specification

  • Input Voltage: 5V
  • Charging Current: 50mA, 200mA, 500mA
  • Limited Charging Voltage: 4.2V±1%
  • Working Temperature: -40°C ~ 85°C
  • Dimension: 16.5 x 28mm/0.65x1.10”

Documents

Parts List

  • Lipo Charger-Type C x1
