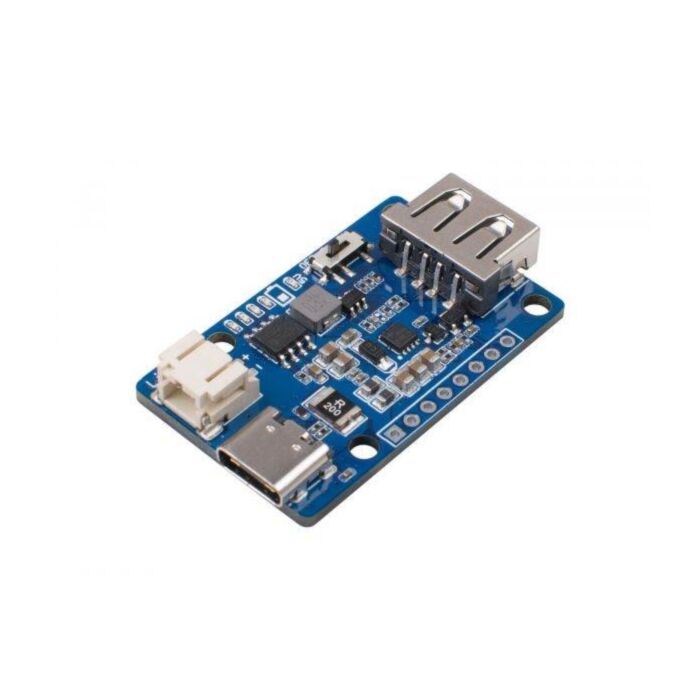

Lipo Rider Plus (Charger/Booster) - 5V/2.4A USB Type C

SKU: SS106990290 Brand: Seeed Studio

Welcome to the era of fast charging! 5V/2A Lipo Rider Plus will greatly increase the charging speed, just like flashing lightning.

$10.55 AUD, inc GST

$9.59 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 24th of Dec

Quantity Discounts:

10-25 $9.21 (exc GST)
25+ $8.92 (exc GST)

Welcome to the era of fast charging! 5V/2A Lipo Rider Plus will greatly increase the charging speed, just like flashing lightning.

The Lipo Rider Plus from Seeed is not only a Fast Charger but also a Strong PowerBoost, supports up to 5V/2A charging current, boost output integration, output up to 5V/2.4A, can also output 3.3V /250mA. The 3.3V output is normally on, and the 5V output supports IO control or manual switch, which means you can use 3.3V to supply power for a microcontroller and use the I/O of this microcontroller to control the 5V output, totally programmable.

Simply put, the Lipo Rider Plus can charge the Lipo battery much faster, at the same time it can provide strong power for the slave device. Oops, forgot to introduce the difference between the Lipo rider and the traditional Lipo charger.

As we know, the traditional Lipo Charger can charge the lithium battery. Well, usually they can only charge. But what can a Lipo Rider do?

Charging the lithium battery

Of course, Lipo Rider Plus can charge the Lipo battery, and it is very fast, 5V/2A, 10W charging power, what a flying experience.

Use the battery to power the device

Not only a charger but also a power supply and a booster. With the help of Lipo Rider Plus, you can input a 3.7V lipo battery, and output up to 5V/2.4A via the USB Type-A port. With the on-board switch, you can control the ON/OFF of USB port easily. Meanwhile, we provide the full function pin header, which can output 3.3V/250mA as well.

Features

Up to 5V / 2A charging current - USB Type C
Up to 5V / 2.4A output current - USB Type A
Provides 3.3V / 250mA output - Pin Header
Support for shutdown output (IO control/manual switch)
Onboard charge status indicator LED + Onboard 4-segment power indicator LED
Ultra-small 2.5cm*4.1cm
Single-layer layout easy mount.

Hardware Overview

Documentation

Lipo rider plus schematic file
ETA9740_V1.1
