SparkFun Triad Spectroscopy Sensor - AS7265x (Qwiic)

SKU: SEN-15050 Brand: Sparkfun

The SparkFun Triad Spectroscopy Sensor is a powerful optical inspection sensor. Three AS7265x spectral sensors are combined alongside a visible, UV, and IR LEDs...

$129.95 AUD, inc GST

$118.14 AUD, exc GST

Available with a lead time
Expect dispatch between Jan 23 and Jan 27

Quantity Discounts:

5-10 $114.59 (exc GST)
10+ $112.23 (exc GST)

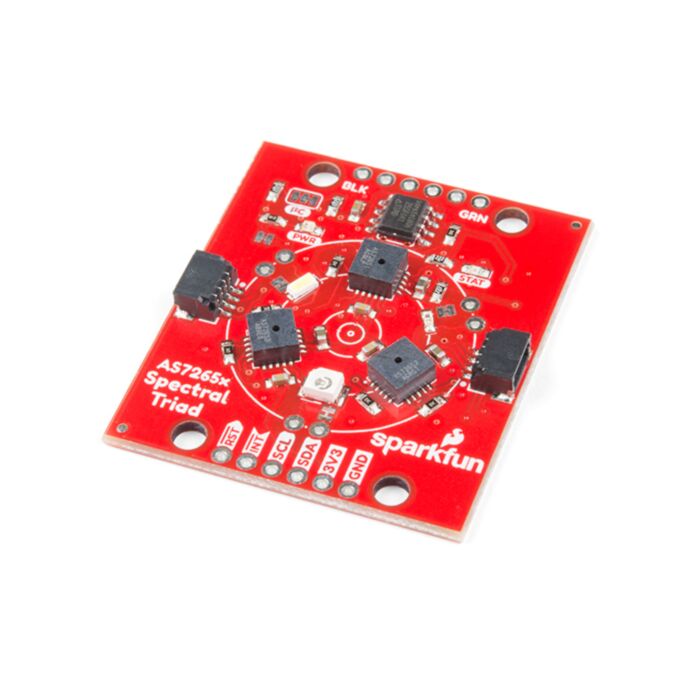

The SparkFun Triad Spectroscopy Sensor is a powerful optical inspection sensor. Three AS7265x spectral sensors are combined alongside a visible, UV, and IR LEDs to illuminate and test various surfaces for light spectroscopy. The Triad is made up of three sensors; the AS72651, the AS72652, and the AS72653 and can detect the light from 410nm (UV) to 940nm (IR). In addition, 18 individual light frequencies can be measured with precision down to 28.6 nW/cm² and accuracy of /-12%. Utilizing our handy Qwiic system, no soldering is required to connect it to the rest of your system. However, Sparkfun still have broken out 0.1"-spaced pins in case you prefer to use a breadboard.

The SparkFun Triad Spectroscopy Sensor communicates over I²C by default or over 115200bps serial. We've written a fully formed Arduino library to access all the various features include taking readings and illuminating LEDs all over the Qwiic I²C interface. In addition, the Triad can be setup to communicate over serial. The serial interface uses an AT command set.

What can you do with light spectroscopy? It's an amazing field of study, and the SparkFun Triad brings what used to be prohibitively expensive equipment to the desktop. The AS7265x should not be confused with highly complex mass spectrometers, but the sensor array does give the user the ability to measure and characterize how different materials absorb and reflect 18 different frequencies of light. We've also written a full Arduino library that makes reading and interacting with the Triad simple and easy!

The SparkFun Qwiic Connect System is an ecosystem of I²C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can't hook it up wrong.

Get Started with the SparkFun Triad Spectral Sensor

Features

Selectable interface: I²C or Serial (115200bps)
18 frequencies of light sensing from 410nm to 940nm
28.6 nW/cm² per count
Accuracy of /-12%
Integrated 405nm UV, 5700k White, and 875nm IR LEDs
Software control over each illumination LED as well as current control
Optional external bulb or illumination control
Programmed with latest firmware from AMS

Documents

Schematic
Eagle Files
Hookup Guide
Datasheets:
- AS7265x
- White LED
- IR LED
- UV LED
SparkFun AS7265x Arduino Library - Search for SparkFun Spectral in the the Arduino library manager
GitHub
