Voltage Regulator 5V (7805)

Rating:
100% of 100
SKU: CE05291 Brand: Core Electronics

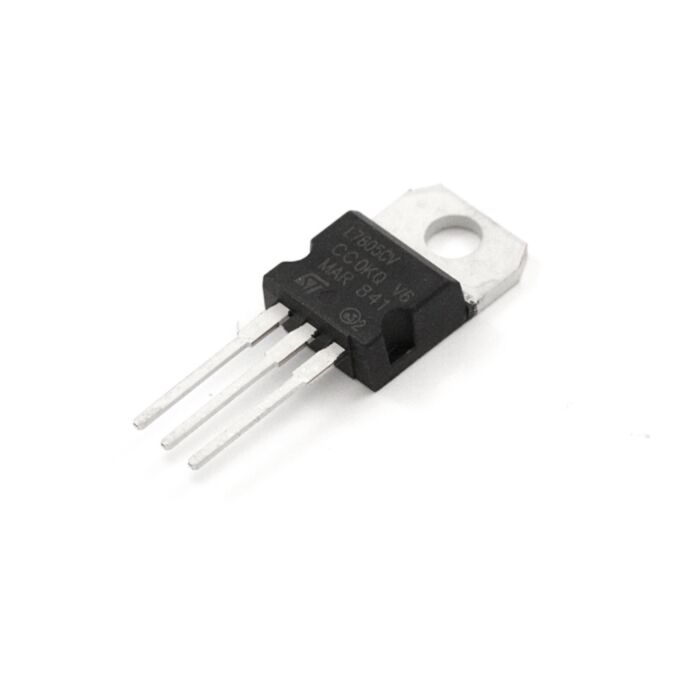

An absolute staple! The ubiquitous L7805 voltage regulator, a three-terminal positive regulator with a 5V fixed output voltage.

$0.92 AUD, inc GST
$0.84 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Mon, 25th of Nov

Quantity Discounts:

  • 8-25 $0.70 (exc GST)
  • 25+ $0.60 (exc GST)
- +

486 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Use this regulator to provide a reliable 5V. With internal current limiting, thermal shut-down control, and safe area protection for your project. Each one of these voltage regulators can output a max current of 1.5A.

Linear voltage regulators burn off excess power as heat, which means the device will get hotter for:

  • higher currents
  • greater differences between input and output voltage.

Features

  • Input Voltage: 7 - 18 V
  • Output Voltage Fixed: 5V
  • Dropout Voltage Vdo: 2V
  • Output Current: 1A
  • Voltage Regulator Case Style: TO-220
  • Input Voltage Max: 35V
  • Input Voltage Min: 7V
  • Supply Voltage Max: 20V
  • Supply Voltage Min: 7.5V

Datasheet (L7805ABV L7805CV)
