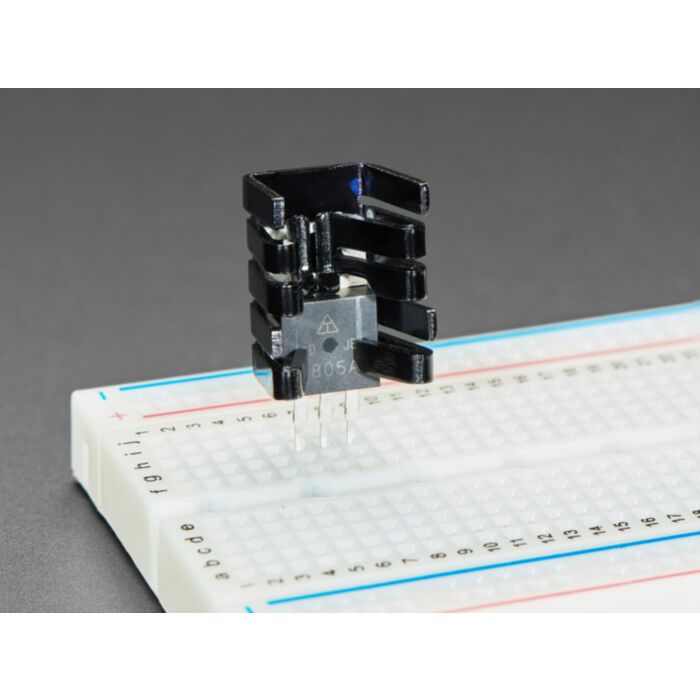

TO-220 Clip-On Heatsink

SKU: ADA977

$1.50 AUD, inc GST
$1.36 AUD, exc GST

More Views

TO-220 Clip-On Heatsink
1.5 AUD

SKU: ADA977

$1.50 AUD, inc GST
$1.36 AUD, exc GST
2 reviews 0 5 5

View our maker favourites for this product which are likely to be a great alternative.

In stock, with a short lead time. 110 units dispatch in 4 to 8 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Mon, 30th of Jul with Express Post within Australia.
Shipping Offer
OR

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Get the most out of your regulators, transistors and other TO-220 packaged chips by clipping on a heat-sink. Your transistor or regulator may advertise it can handle high currents but when multiplied by the drop voltage, the Wattage may be too high for the bare chip! Most TO-220's can disipate about 2W's worth without a sink.

This basic, and easy-to-use 23°C/W sink will let you burn about 4 Watts of power through a TO-220 (assuming an ambient temperature of 25°C and max die temp of 150°C). No screws or thermal paste required. For more detailed calculations, check out the Daycounter heatsink calc

Technical Details

Weight: 1.88g

Dimensions: 21.5mm x 10.2mm x 19.2mm



Documentation and Resources:

Product Comments


Customer Reviews

  1. Review by david verified purchaser
    Rating
    100

    I am using some Arduino power FETs, but they can get hot, So I bought some of these clip-on heat sinks. They clip on to the transistor as the name suggests making them very convenient, but they also have a skew hole so that they can be made permanent...
    David (Posted on 6/11/2017)

  2. Review by Glenn verified purchaser
    Rating
    100

    Easy to clip on over the top of your transistors. Little fitting if you want to secure it as well, but I found on using it twice that it holds snuggly as is. (Posted on 1/08/2016)
