Mini Base Board (A) for CM5 - Board only

SKU: WS-30489 Brand: Waveshare
Mini Base Board (A) designed for Raspberry Pi Compute Module 5...
$33.85 AUD, inc GST
$30.77 AUD, exc GST

Available with a lead time
Expect dispatch between May 30 and Jun 02

Quantity Discounts:

  • 10+ $29.55 (exc GST)
  • 25+ $28.62 (exc GST)

Restrictions apply to this equipment as it uses button/coin cell batteries:

  • The equipment is intended to be used in trades, professions or industries
  • The equipment is not intended for sale to the general public
  • The equipment is not intended to be used where children are present
  • You are aware that this equipment may not meet child safety testing requirements as it is not intended to be used by consumers or general public, but rather, is intended to be used in trades, professions or industries in conjunction with the limitations and restrictions listed above
  • You are aware that these restrictions are due to a change in Australian legislation in 2022 for button/coin cell batteries

Button Battery Warning

A declaration of use will need to be submitted during checkout.

- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Details

Mini Base Board (A) / Mini-Computer designed for Raspberry Pi Compute Module 5 (NOT Included)
Mini-computer for Compute Module 5

Designed for Raspberry Pi Compute Module 5

Waveshare CM5-IO-BASE-A inside, fast and easy to build a mini-computer

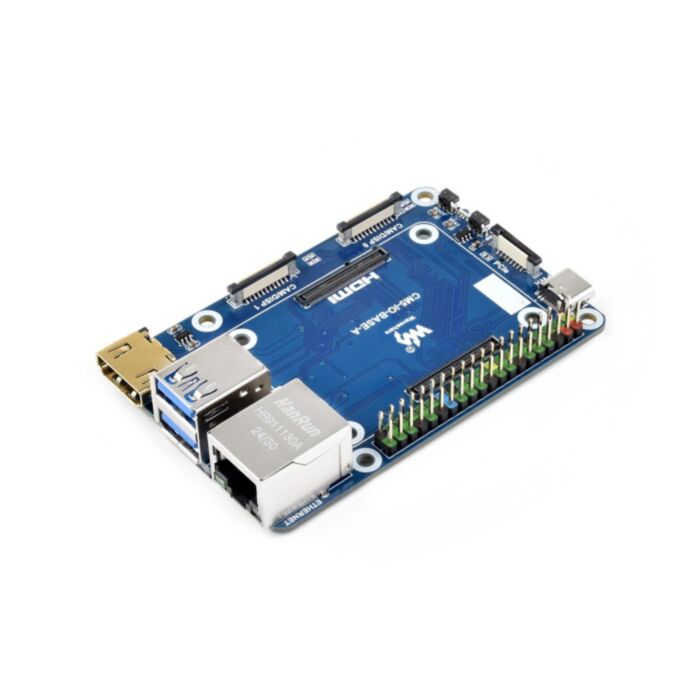

Mini Base Board (A) designed for CM 5, front view
Version options
CM5-IO-BASE-A

CM5-IO-BASE-A
the base board only

CM5-IO-BASE-BOX-A

CM5-IO-BASE-BOX-A
the base board + Aluminum Alloy case + 27W power supply

* Please refer to the Package Content for detailed part list



Specifications
CM5 socketsuitable for all variants of Compute Module 5
NetworkingGigabit Ethernet RJ45 connector
Connector16PIN PCIe (PCIe Gen2/3 x1)
Raspberry Pi 40PIN GPIO header
USBUSB 3.2 Gen1 Type A × 2, USB 2.0 via 6PIN 1mm FFC connector × 2
MIPI4-lane MIPI interface × 2 (22pin 0.5mm FFC connector)
VideoHDMI port × 2 (including one port via FFC connector), supports dual 4K outputs
StorageTF card slot for Compute Module 5 Lite (without eMMC) variants
Fan header5V, 4PIN JST-SH PWM connector
Power inputDC 5V 5A
Dimensionsthe base board: 85 × 56mm
with metal case: 90 × 68mm
What's the differences
CM5 Base BoardInterface count and specifications
PoEGigabit
ETH
40PIN
GPIO
PCIeUSB?MIPIHDMIRTCFan
Header?
Power
Input
Features

NANO A
  v 3.0×1×2 SH1.0v5VCM5 sized

NANO B
 ×1v16PIN PCIe3.0×1×2vSH1.0v5VCM5 sized

mini Base A
 ×1v16PIN PCIe3.0×2
2.0×2
×2×2ML/CR1220v5Vmini size

mini Base B
 ×1vM.2 M KEY3.0×2
2.0×2
×2×2ML/CR1220v5Vmini size, onboard EEPROM and encryption chip

Mini Dual Gigabit
 ×2v 3.0×1  SH1.0v5Vdual ETH

PoE Base
v×1vM.2 M3.0×2
2.0×2
×2×2ML/CR1220v5VUSB×4

Raspberry Pi official
?×1vM.2 M3.0×2×2×2ML/CR1220v5VOfficial IO base board
Note? USB 3.0 is equivalent to USB 3.2 Gen1.
? Unless otherwise specified, the Fan header usually is JST-SH type connector.
? There's PoE header only on the Raspberry Pi official IO board without PoE circuit, which means additional PoE module is required for the official IO board to enable PoE feature.
Unless otherwise specified, the PoE feature here stands for integrating 802.3af-compliant PoE circuit (5V/2.5A).

Connecting with Compute Module 5

standard CM5 socket and color-coded Raspberry Pi 40PIN GPIO header
suitable for Compute Module 5 Lite/eMMC series module

Mini Base Board (A) designed for CM 5, connecting with Compute Module 5

Compact, yet Complete

onboard multiple connectors, more convenient to use

Mini Base Board (A) designed for CM 5, onboard interface

Precise cut-out with clear label

each cut-out is completely aligned with the connector

Mini-Computer designed for CM 5, onboard interfaceMini-Computer designed for CM 5, onboard interface


Cooling fan included

comes with cooling fan, combined with the airflow vent, better heat dissipation

Mini-Computer designed for CM 5, with cooling fan
Wall-mount & Rail-mount support

comes with wall-mount brackets and rail-mount buckle for more flexible installation

Mini-Computer designed for CM 5, wall-mount installation

Wall-mount Installation

Mini-Computer designed for CM 5, rail-mount installation

Rail-mount Installation

Access to USB HDMI Adapter

Mini Base Board (A) designed for CM 5, access to USB HDMI Adapter

for reference only, the USB HDMI Adapter is NOT included.



What's On Board
Mini Base Board (A) designed for CM 5, onboard components
  1. CM5 socket
    suitable for all variants of Compute Module 5
  2. 40PIN GPIO header
    for connecting various HAT / HAT+ modules
  3. Power input/Programming
    5V / 5A power supply, or used for eMMC burning
  4. PCIe interface
    for connecting various PCIe expansion boards
  5. PSW Power button
    Long press to force power off, short press to soft power off or on
  6. STAT LED
    Dual-color status LED
  7. BOOT button
    Press before powering on and release after powering on to enter the burning mode
  8. Dual MIPI interfaces
    for connecting DSI displays and CSI cameras
  9. HDMI0 connector
    HDMI0 port, supports 4K output
  10. USB 3.2 Gen1 ports
    2x USB 3.2 Gen1 high-speed ports, supports 5Gbps synchronous operation
  1. RJ45 Gigabit Ethernet port
    Supports 10M / 100M / 1000M network access
  2. 4PIN JST-SH PWM Fan header
    for connecting cooling fan, 5V power supply
  3. TF card slot
    for connecting a TF card with pre-burnt image (Lite variant ONLY)
  4. IO-VREF selection
    CM5 IO logic level: 3.3V (default) or 1.8V
  5. Other function pins
    WIFI / BT hardware disable or write protection
  6. HDMI1 FFC connector
    HDMI1 port, supports 4K output, can be connected through an adapter
  7. USB 2.0 FFC connector
    can be connected through an adapter
  8. RTC battery holder
    Supports CR / ML1220 button cell

Application example

Mini Base Board (A) designed for CM 5, application example

for reference only, the CM5, displays, and cameras are NOT included.

Outline dimensions

CM5-IO-BASE-A

Mini Base Board (A) designed for CM 5, outline dimensions

with metal case

Mini Base Board (A) with metal case, outline dimensions
Resources & Services

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Quick Overview

CM5-IO-BASE-A

  1. CM5-IO-BASE-A x1
  2. Screws pack x1
1CM5-IO-BASE-A
2

CM5-IO-BASE-BOX-A

  1. CM5-IO-BASE-A x1
  2. Metal case (top and bottom) x1
  3. Antenna connector rubber plug x1
  4. EVA foam pad x1
  5. CM5-FAN-4010-5V x1
  6. Rail-mount buckle x1
  7. Screws pack x1
  8. Screwdriver x1
  9. OPTIONS 27W Power Supply x1
CM5-IO-BASE-BOX-A
