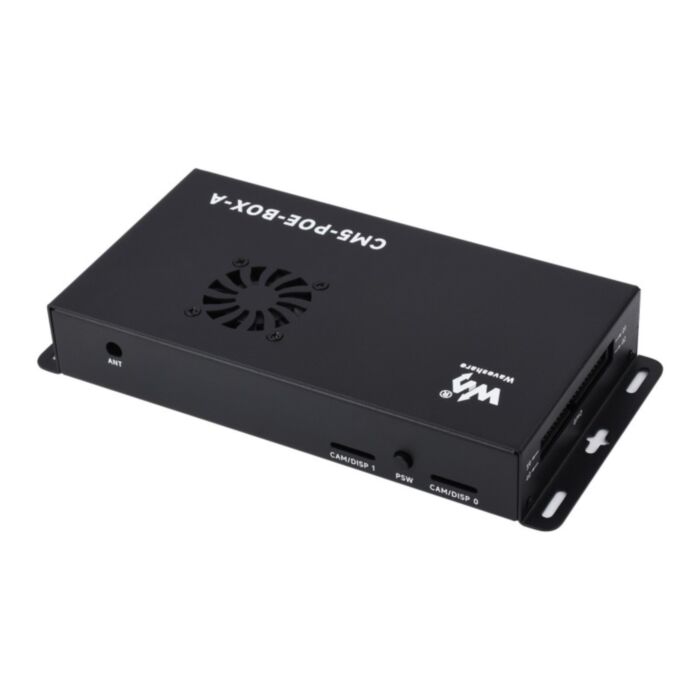

Raspberry Pi Compute Module 5 IO Board with PoE Feature, for all Variants of CM5 Compute Module 5 PoE Base Board
CM5 socket |
suitable for all variants of Compute Module 5 |
---|---|
Networking |
Gigabit Ethernet RJ45 connector, integrates 802.3af/at-compliant PoE circuit (5V/5A) |
Connector |
Raspberry Pi 40PIN GPIO header |
USB |
USB 3.2 Gen1 × 2 USB 2.0 × 2 |
MIPI |
4-lane MIPI interface × 2 (22pin 0.5mm FPC connector) |
Video |
HDMI port × 2, supports 4K output |
RTC |
CR / ML2032 battery holder |
Storage |
TF card slot for Compute Module 5 Lite (without eMMC) variants |
Fan connector |
5V, JST-SH PWM 4PIN connector |
NVMe |
PCIe Gen2/3 × 1 |
Power input |
5V 5A (adapter not included) |
Dimensions |
the base board: 160 × 90 (mm) with metal case: 200.5 × 97.5 × 31.0 (mm) |
