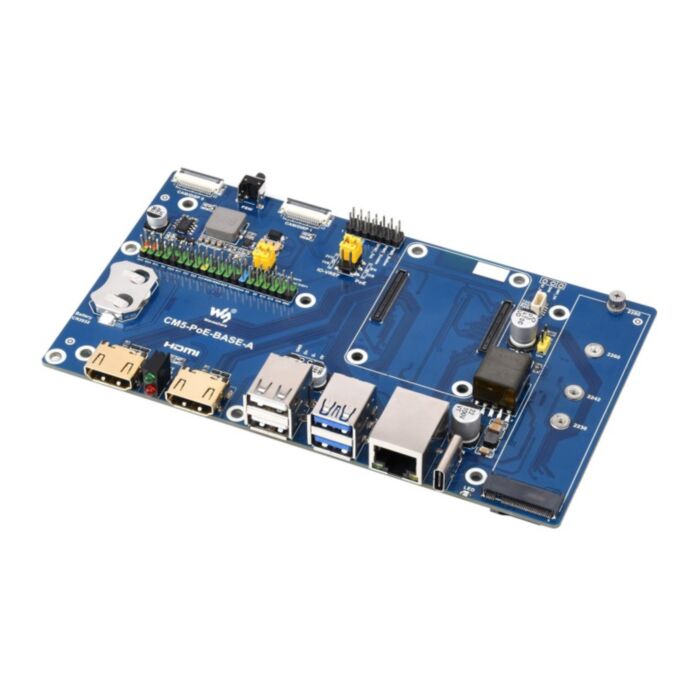

Raspberry Pi Compute Module 5 IO Board

SKU: WS-29488 Brand: Waveshare
Raspberry Pi Compute Module 5 IO Board with PoE Feature, for all Variants of CM5...
$62.95 AUD, inc GST
$57.23 AUD, exc GST

Available with a lead time
Expect dispatch between Feb 03 and Feb 05

Restrictions apply to this equipment as it uses button/coin cell batteries:

  • The equipment is intended to be used in trades, professions or industries
  • The equipment is not intended for sale to the general public
  • The equipment is not intended to be used where children are present
  • You are aware that this equipment may not meet child safety testing requirements as it is not intended to be used by consumers or general public, but rather, is intended to be used in trades, professions or industries in conjunction with the limitations and restrictions listed above
  • You are aware that these restrictions are due to a change in Australian legislation in 2022 for button/coin cell batteries

Button Battery Warning

A declaration of use will need to be submitted during checkout.

- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Raspberry Pi Compute Module 5 IO Board with PoE, for all Variants of CM5 Compute Module 5 PoE Base Board

Specifications

CM5 socket Suitable for all variants of Compute Module 5
Networking Gigabit Ethernet RJ45 connector, integrates 802.3af/at-compliant PoE circuit (5V/5A)
Connector Raspberry Pi 40PIN GPIO header
USB USB 3.2 Gen1 × 2
USB 2.0 × 2
MIPI 4-lane MIPI interface × 2 (22pin 0.5mm FPC connector)
Video HDMI port × 2, supports 4K output
RTC Real-time clock with CR / ML2032 battery holder
Storage TF card slot for Compute Module 5 Lite (without eMMC) variants
Fan connector 5V, JST-SH PWM 4PIN connector
NVMe PCIe Gen2/3 × 1
Power input 5V 5A
Dimensions 160 × 90 mm

Connecting with Compute Module 5

Standard CM5 socket and Raspberry Pi 40PIN GPIO header, suitable for all variants of Compute Module 5.

Power Over Ethernet

Providing both network connection and power supply for your Raspberry Pi in one cable.

Supports M.2 NVMe Solid State Drive

Faster reading/writing speeds compared to the TF card slot of Raspberry Pi, greatly improving system or file access efficiency. Supports booting Raspberry Pi from an NVMe Solid State Drive.

NVMe Drive Slot Support

Note: Only supports NVMe protocol Solid State Drives.

Rich Peripheral Connectors

Onboard connectors including MIPI / M.2 / HDMI / USB / Ethernet / TF Card Slot.

Precise Cut-outs with Clear Labels

Each cut-out is precisely aligned with its corresponding connector.

Cooling Fan Included

Comes with a cooling fan and an airflow vent for better heat dissipation.
