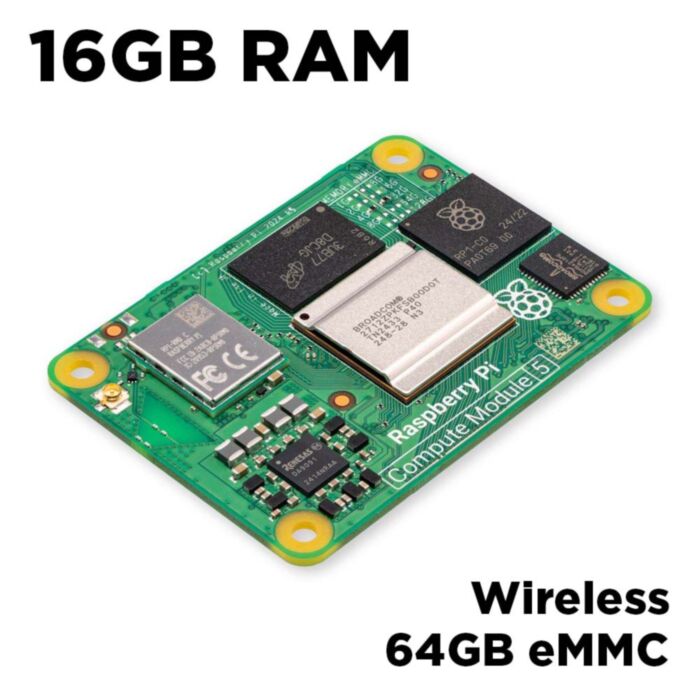

Raspberry Pi Compute Module 5 16GB Wireless 64GB eMMC
A compact embedded computing board featuring integrated wireless, 16GB of RAM and 64GB eMMC storage, engineered for versatile IoT, industrial, and embedded system applications.
Available with a lead time
Expect dispatch between May 06 and May 19
Recommended Essentials:
This CM5 has:
- 16GB RAM
- 64GB eMMC (Onboard storage)
- Wireless
Experience Next-Level Embedded Computing with Raspberry Pi’s latest Compute Module 5. Engineered using the hardware of the Raspberry Pi 5, this powerful module is built to transform commercial, industrial, and maker projects.
Designed for ultimate flexibility and deep integration the Compute Module 5, requires a specialised carrier board to operate (depending on the required features). For a comprehensive development experience, Raspberry Pi offers the official development kit, which serves as both a robust engineering platform and an ideal introduction to the module’s full capabilities.
Powered by a 2.4GHz quad-core ARM Cortex-A76 CPU, and available with up to 16GB of LPDDR4x RAM, the Compute Module 5 delivers unrivaled performance for even the most demanding applications—whether you’re building industrial automation systems, custom media centers, or cutting-edge IoT solutions.
Specifications
- Broadcom BCM2712 quad-core 64-bit Arm Cortex-A76 CPU @ 2.4GHz
- OpenGL ES 3.1 and Vulkan 1.2 graphics support
- 4Kp60 HEVC (H.265) hardware decoder
- Dual HDMI 2.0 ports, supporting up to 4Kp60 simultaneously
- Dual 4-lane MIPI DSI display and dual 4-lane MIPI CSI-2 camera interfaces
- 1 × DPI (parallel RGB display) interface
- 1 × I2S audio interface
- RAM: LPDDR4-4267 SDRAM with ECC (Refer to text above for capacity)
- eMMC Flash storage (Refer to text above for capacity)
- 2.4GHz and 5GHz IEEE 802.11b/g/n/ac wireless LAN and Bluetooth 5.0 with BLE
- On-board switch for PCB trace or external antenna selection (via software)
- Gigabit Ethernet PHY with IEEE 1588 support
- 1 × PCI Express Gen 2 x1 root complex (5Gbps)
- 2 × USB 3.0 ports (5Gbps simultaneous)
- 1 × USB 2.0 high-speed port
- 1 × SDIO 2.0 interface (CM5 Lite)
- Up to 30 GPIO pins, supporting 1.8V or 3.3V signaling:
- Up to 5 × UART
- Up to 5 × I2C
- Up to 5 × SPI
- Up to 4 × PWM channels
- Up to 3 × GPCLK outputs
- 1 × SDIO interface
- Module dimensions: 55mm × 40mm × 4.7mm
- 4 × M2.5 mounting holes
Dimension Drawing
