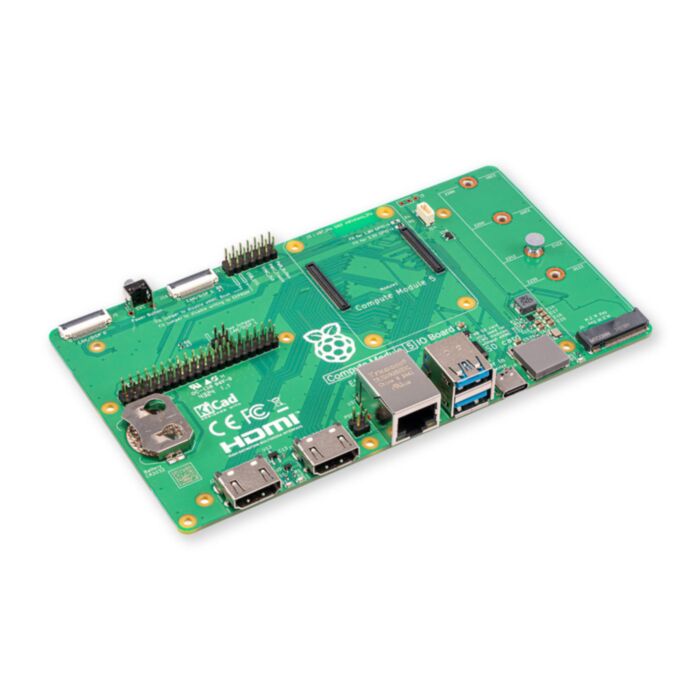

Raspberry Pi Compute Module 5 IO Board

SKU: CE10184 Brand: Raspberry Pi

All of the IO you need to get started with the Compute Module 5!

$30.10 AUD, inc GST
$27.36 AUD, exc GST

Available with a lead time
Expect dispatch between Jun 02 and Jun 16

Restrictions apply to this equipment as it uses button/coin cell batteries:

  • The equipment is intended to be used in trades, professions or industries
  • The equipment is not intended for sale to the general public
  • The equipment is not intended to be used where children are present
  • You are aware that this equipment may not meet child safety testing requirements as it is not intended to be used by consumers or general public, but rather, is intended to be used in trades, professions or industries in conjunction with the limitations and restrictions listed above
  • You are aware that these restrictions are due to a change in Australian legislation in 2022 for button/coin cell batteries

Button Battery Warning

A declaration of use will need to be submitted during checkout.

- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The Compute Module 5 IO Board (CM5 IO) is the official Raspberry Pi carrier for Compute Module 5, in a tidy 160 mm × 90 mm form-factor that exposes all of the CM5 interface's on familiar connectors for evaluation and product design.

Accepting all CM5 variants, it adds similar interfaces to the Raspberry Pi 5 dual HDMI 2.0, Gigabit Ethernet with PoE+ HAT header, twin USB 3.0, an M.2 Key-M slot for NVMe storage, two 4-lane MIPI DSI/CSI ports, a 40-pin HAT+ GPIO header, RTC backup, and a USB-C soft-power input—all on a single, robust board.

Raspberry Pi publishes open KiCad design files alongside a detailed datasheet and product brief, giving engineers a solid reference for custom carrier development.

Note: Compute Module 5 is not included - sold separately.

Specifications

  • Form factor: 160 mm × 90 mm
  • CM5 mezzanine connector – supports all Compute Module 5 variants
  • 2 × full-size HDMI 2.0 (up to 4Kp60)
  • Gigabit Ethernet (RJ45) with PoE+ HAT header for 802.3af/at power
  • 2 × USB 3.0 Type-A
  • M.2 Key-M PCIe Gen 2 ×1 for NVMe SSDs (2230 / 2242 / 2260 / 2280) (512GB or 256GB)
  • microSD slot for CM5 Lite (no eMMC) variants
  • 2 × 4-lane MIPI DSI/CSI-2 (22-pin 0.5 mm FPC)
  • Standard 40-pin GPIO / HAT+ footprint
  • 4-pin PWM fan connector & RTC battery holder (CR/ML2032)
  • Power input: 5 V @ 5 A via USB-C with on-board power button - Raspberry Pi Recommend a 27W Pi 5 Power supply
