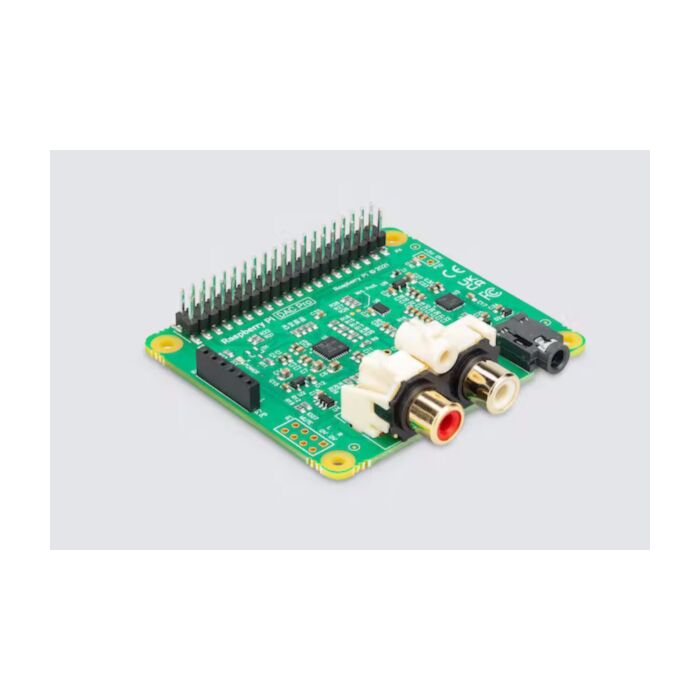

The Raspberry Pi DAC Pro is Raspberry Pi's highest-fidelity audio output HAT. It uses the Texas Instruments PCM5242 DAC to deliver outstanding signal-to-noise ratio performance from a Raspberry Pi 1 Model B+, 2, 3, and 4, and supports balanced/differential output in parallel to phono/RCA line level output. It also includes a dedicated headphone amplifier.
In stock, ships same business day if ordered before 2PM
Delivered by Mon, 25th of Nov
Quantity Discounts:
Recommended Essentials:
The Raspberry Pi DAC Pro is our highest-fidelity audio output HAT. It uses the Texas Instruments PCM5242 DAC to deliver outstanding signal-to-noise ratio performance from a Raspberry Pi 1 Model B+, 2, 3, and 4, and supports balanced/differential output in parallel to phono/RCA line level output. It also includes a dedicated headphone amplifier.
HighPi Pro Case is designed for the DAC Pro (other cases will not fit).
Getting Started
The DAC Pro connects to the 40-pin GPIO header of Raspberry Pi 1 Model B+, Raspberry Pi 2, Raspberry Pi 3, or Raspberry Pi 4 with no need for soldering or external power.
The DAC Pro exposes two 3-pin headers (P7/P9) used by the optional XLR board to provide differential/balanced output exposed by XLR sockets above Raspberry Pi’s USB/Ethernet ports.
P1: Analogue out (0-2V RMS). Carries GPIO27, MUTE signal (headphone detect), left and right audio, and left and right ground.
P6: Headphone socket signals. Pin 1: LEFT, pin 2: GROUND, pin 3: RIGHT, pin 4: GROUND, pin 5: DETECT
P7/9: Differential output (0-4V RMS). P7: LEFT, P9: RIGHT.
P10: Alternative 5V input, powering the Raspberry Pi in parallel.
Features
Dimensions
Documents
Changelog
This product was renamed from IQaudio DAC+ to Raspberry Pi DAC+ in November 2022, a firmware update may be required for the newest revision of the hardware. The full change notice is available here.
