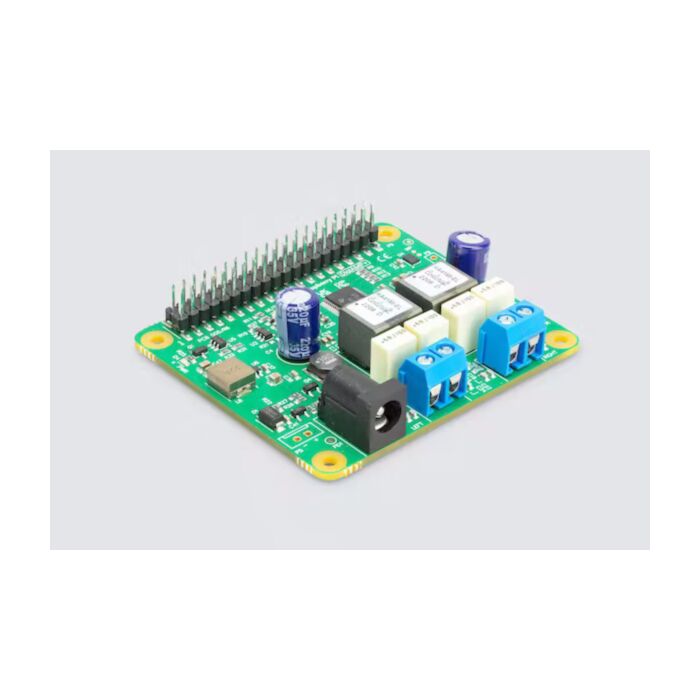

Raspberry Pi DigiAMP+

Rating:
95% of 100
SKU: CE07562 Brand: Raspberry Pi

The Raspberry Pi DigiAMP+ uses the Texas Instruments TAS5756M PowerDAC to deliver direct connection to PASSIVE stereo speakers at up to 2x35wpc with variable output. Ideal for a Raspberry Pi-based hi-fi system.

$47.05 AUD, inc GST
$42.77 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 26th of Nov

Quantity Discounts:

  • 10-25 $41.49 (exc GST)
  • 25+ $40.64 (exc GST)
- +

38 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The Raspberry Pi DigiAMP+ uses the Texas Instruments TAS5756M PowerDAC to deliver direct connection to PASSIVE stereo speakers at up to 2x35wpc with variable output. Ideal for a Raspberry Pi-based hi-fi system.

HighPi Pro Case is designed for the DigiAMP+ (other cases will not fit).

Getting Started

The Raspberry Pi DigiAMP+ connects to the 40-pin GPIO header of Raspberry Pi 1 Model B+, Raspberry Pi 2, Raspberry Pi 3, or Raspberry Pi 4 with no need for soldering. The DigiAMP+ must be powered from an external supply, and requires a 12-24V DC power source to its 5.5 mm x 2.5 mm barrel connector. The XP Power VEC65US19 power supply is recommended for use with DigiAMP+.

DigiAMP+ has been designed to provide power to the Raspberry Pi-plus-DigiAMP+ combination in parallel, delivering 5.1V @ 2.5A to your Raspberry Pi.

DO NOT APPLY POWER TO RASPBERRY Pi'S OWN POWER INPUT WHEN USING DigiAMP+.

The amplifier is by default muted at power on (mute LED lit). The mute state/LED is under software control (Raspberry Pi GPIO22).

P5: Alternative power input for hard-wired installations. POLARITY MUST BE OBSERVED!

P8: TAS5756m Internal GPIO1/2/3

Download IQaudio Products Guide

Changelog

This product was renamed from IQaudio DigiAMP+ to Raspberry Pi DigiAMP+ in November 2022, a firmware update may be required for the newest revision of the hardware. The full change notice is available here.
