Stacking Header for Pi A+/B+/Pi 2/Pi 3 - 2x20 Extra Tall Header

SKU: ADA1979

$4.95 AUD, inc GST
$4.50 AUD, exc GST

More Views

Stacking Header for Pi A+/B+/Pi 2/Pi 3 - 2x20 Extra Tall Header
4.95 AUD

SKU: ADA1979

$4.95 AUD, inc GST
$4.50 AUD, exc GST
In stock, with a short lead time. 119 units dispatch in 4 to 7 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Fri, 1st of Sep with Express Post within Australia.

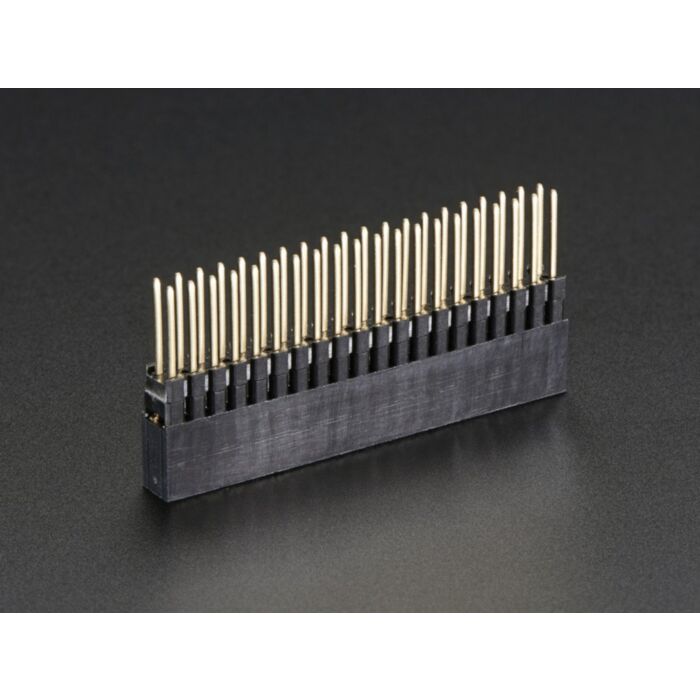

Stack multiple plates, breakouts etc onto your Raspberry Pi Model B+ with this custom-made extra-tall and extra-long 2x20 female header. The female header part has extra spaces to make it 23mm tall: when placed on your Pi, a PCB will clear the Ethernet and USB jacks. The stacky pin part is also extra-long, 10mm, so that when a standard 1.5mm thickness PCB is installed, there will be 8.5mm remaining, plenty to plug into.


You'll get one header per order.

Note: The Raspberry Pi Model A+ and Raspberry Pi 2 are also compatible with this product!
//www.youtube.com/embed/4s2nUeb_HdI?start=150

Technical Details

  • Dimensions: 5mm x 51mm x 23mm / 0.2" x 2" x 0.9"
  • Pin Length: 10mm
  • Pin Spacing: 2.5mm / 0.1"
  • Pin Thickness: 0.6mm / 0.02"
  • Weight: 6.5g
