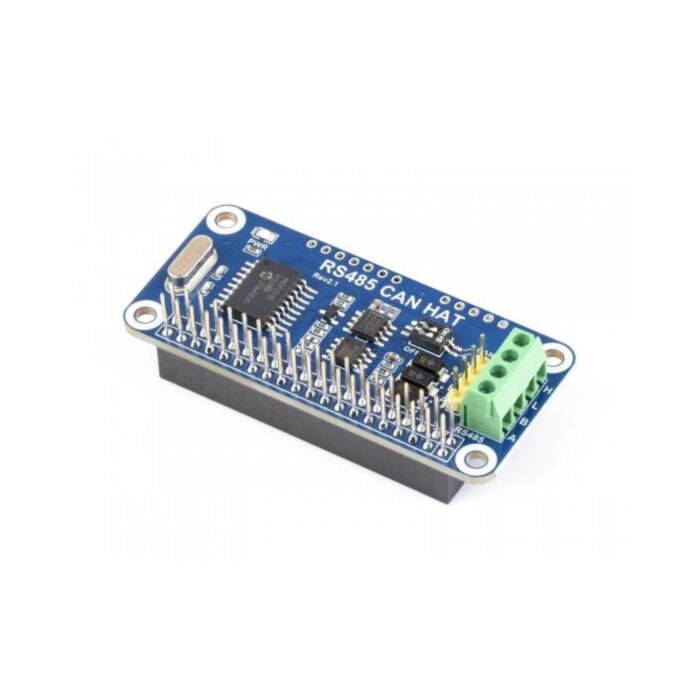

RS485 CAN HAT for Raspberry Pi

Rating:

100% of 100

2 Reviews

SKU: WS-14882 Brand: Waveshare

RS485 CAN HAT For Raspberry Pi, Allows Stable Long-Distance Communication

$23.40 AUD, inc GST

$21.27 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

10-25 $20.42 (exc GST)
25+ $19.78 (exc GST)

Details

RS485 CAN HAT for Raspberry Pi, Allows Stable Long-distance Communication

RS485 CAN HAT for Raspberry Pi

Allows Stable Long-distance Communication between Raspberry Pi and other devices

Comes with online development resources and manual

Features at a glance

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
CAN function, onboard CAN controller MCP2515 via SPI interface, onboard transceiver SIT65HVD230DR
RS485 function, controlled via UART, half-duplex communication, supports automatic TX/RX control without programming, onboard transceiver SP3485
Onboard 120O terminal resistor for RS485 and CAN interfaces, enabled via DIP switch
Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit for RS485 transceiving, lightningproof & anti-electrostatic
Reserved control header, allows working with other control boards
Comes with online development resources and manual (examples in wiringPi/python)

Specifications

CAN controller	MCP2515	Operating voltage	3.3V
CAN transceiver	SIT65HVD230DR	Mounting hole size	3.0mm
485 transceiver	SP3485	Dimension	65×30mm

Designed for Raspberry Pi Series

Standard Raspberry Pi 40PIN GPIO Header, Customized For Raspberry Pi Series Boards

Expand CAN and RS485 functions

CAN: onboard CAN controller MCP2515 via SPI interface, with transceiver SIT65HVD230DR
RS485: controlled via UART, half-duplex communication, onboard transceiver SP3485

Onboard Transient Voltage Suppressor

effectively suppress surge voltage and transient spike voltage in the circuit for RS485 transceiving

Pin Definition

Product show

Outline dimensions

Resources & Services

WIKI: www.waveshare.com/wiki/RS485_CAN_HAT

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Weight: 0.018 kg

Quick Overview

It is recommended to purchase USB TO RS485 or USB-CAN-A at the same time for easy testing.

RS485 CAN HAT x1
RPi screws pack (2pcs) x1
