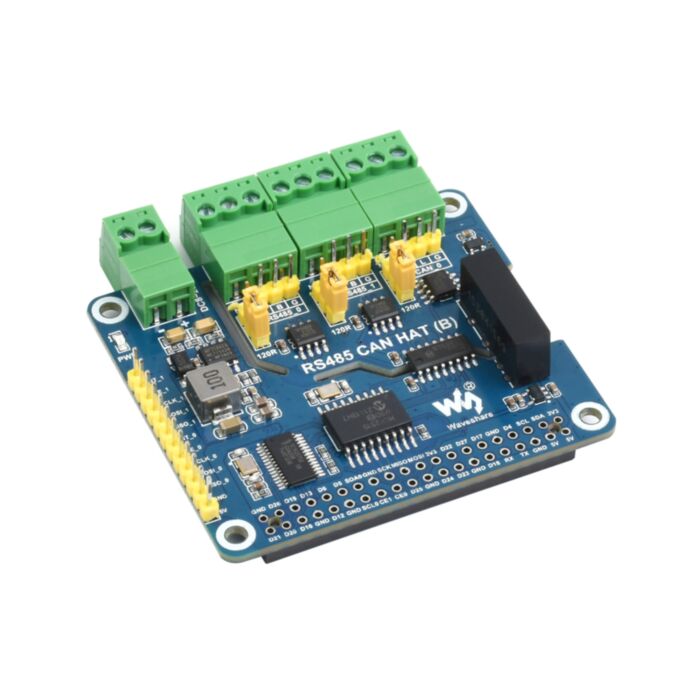

Isolated RS485 CAN HAT (B) For Raspberry Pi, 2-Ch RS485 and 1-Ch CAN, Multi Protections

SKU: CE09198 Brand: Waveshare

Isolated RS485 CAN HAT (B) For Raspberry Pi, 2-Ch RS485 and 1-Ch CAN, Multi Protections...

$38.35 AUD, inc GST

$34.86 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 7th of May

Quantity Discounts:

10-25 $33.82 (exc GST)
25+ $33.12 (exc GST)

Isolated RS485 CAN HAT (B) For Raspberry Pi, 2-Ch RS485 and 1-Ch CAN

Features

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
1-Ch CAN, adopts MCP2515 controller and CAN transceiver, converting SPI to CAN
2-Ch RS485, adopts SC16IS752+SP3485 dual-chip combination, converts SPI to RS485
Onboard power conversion circuit, supports 8~28V wide voltage power supply, can power the Raspberry Pi at the same time
Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply required for the isolated terminal
Onboard unibody digital isolation, for isolating the signal, reliable and jamproof, low power consumption
Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance
Onboard 120O terminal resistor, configured by jumper
Onboard terminals and pin headers, more convenient connection
Breakout SPI control pins, for connecting with host control boards

Specifications

Expanded interface	2-Ch RS485 + 1-Ch CAN
COMMUNICATION INTERFACE	SPI
CAN Controller	MCP2515
CAN transceiver	SIT65HVD230DR/SN65HVD23D
CAN Baud Rate	≦1Mbps
UART Expansion Chip	SC16IS752
RS485 transceiver	SP3485
RS485 Baud Rate	300~921600 bps
Power Supply	External power supply terminal OR Raspberry Pi
External power supply Range	DC 8~28V
Operating Voltage	3.3V
Dimensions	65 × 56.5 mm

Whats onboard

Enable Isolated And Stable RS485 And CAN Capability For Your Raspberry Pi

Chip Features

MCP2515 CAN controller
SIT65HVD230DR/SN65HVD23D CAN transceiver
SP3485 RS485 transceiver
SC16IS752 UART expansion
p163M31 digital isolator
B0505LS-1W Power supply isolation

Others

Power supply interface DC 8~28V, can power the HAT and Raspberry Pi
RS485 bus interface Connect via screw terminals/pin header
CAN bus interface Connect via screw terminals/pin header
Raspberry Pi GPIO header
SPI control header for connecting with host boards like STM32/Arduino
CAN terminal resistor jumper Switch to 120O by default
RS485 Terminal resistor jumper Switch to 120O by default
Power Indicator

Pin Definition

Dimensions

Resources

Wiki for RS485/CAN HAT

Shipping List

RS485 CAN HAT (B) x1
2x20PIN female header x1
Screws pack x1

Cables NOT included
